QOM-eLED+0-10V-PS

Pool & Spa: 12V or 24V DC LED Power Supply - 60W–400W
CSA Certified
RoHS LED lighting product
Pool & Spa Rated
5 Year Warranty
Declare Label Approved Lighting
Red List Approved

60W–400W at 12VDC or 24VDC indoor and outdoor 0-10V power supply. Suitable for pool & spa.

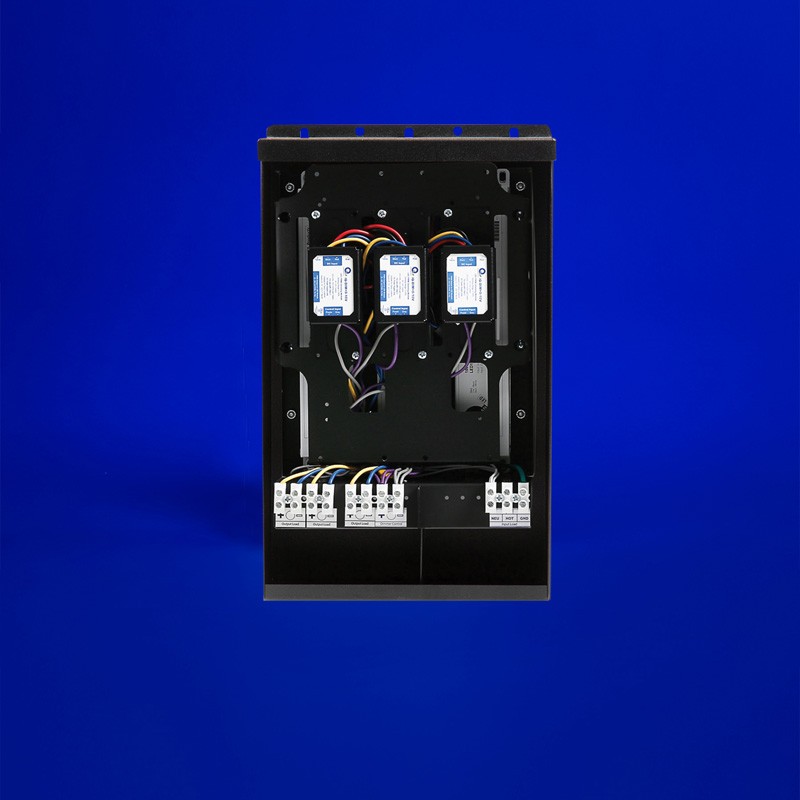

  • Surface mount, exterior rated LED power supply center.
  • Utilizes UL Class 2 drivers with optional 0-10V dimming modules.
  • Designed for powering 12VDC or 24VDC constant voltage products.
  • Ideal for 0-10V or on/off applications.
  • 0-10V dimming provides PWM to the fixture for smooth dimming.
  • UL listed enclosure can accommodate 1-4 drivers and 1-4 dimming modules.
  • Provides plenty of flexibility and comes with all modules prewired together with terminal blocks for landing your LED and control
    wires.
  • Suitable for both indoor and outdoor use, and it has the additional option to be used in pool & spa applications.
Voltage Drop Calculator
More About QOM-eLED+0-10V-PS
Technical InformationRelated Products

Technical Information

Primary Voltage Universal
Wattage 60W, 100W, 120W. 180W, 200W, 300W, 400W
Secondary Voltage 12VDC, 24VDC
Warranty 5 Year
Certifications CSA, RoHS, Declare, Red Listed
Color Black powder coat finish, 316 marine grade stainless steel
Dimming Performance DIM 0.1%
Dimming Protocol 0-10V, Non-Dim
