Q-LINK

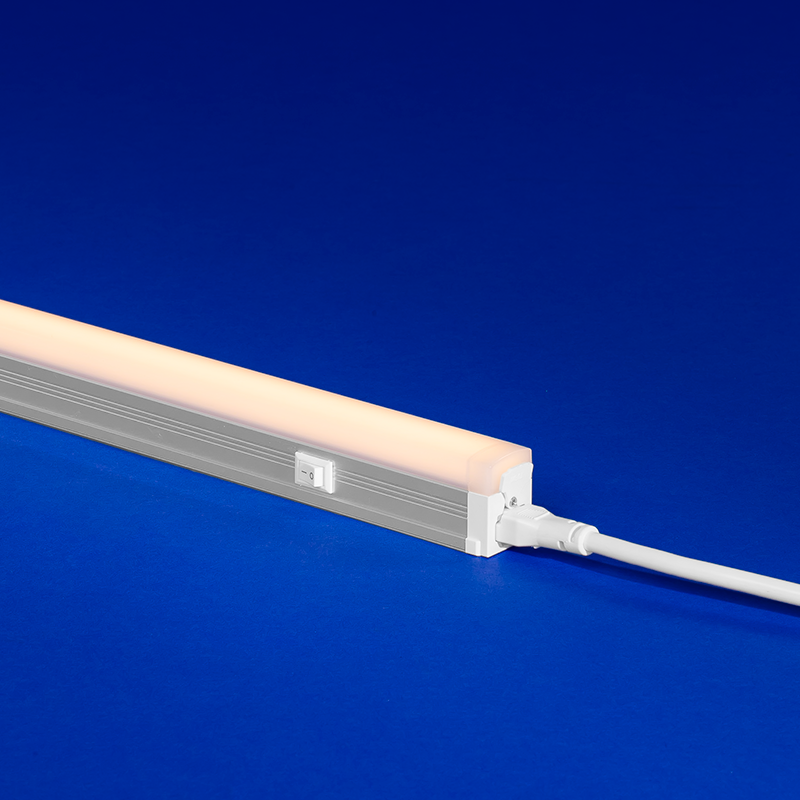

Static WhiteDry-rated 120V LED line voltage fixture in fixed lengths of 12", 24", 36", & 48"
Designed for easy installation, QTL's Q-LINK 120V line voltage LED fixture is available in sections of 12", 24", 36" & 48" long with the option to extend up to 10 fixtures joined together. CCTs are available from 2400K through 4000K, allowing for the creation of the perfect ambiance from warm to neutral.
More About
Q-LINK
Technical Information
Watts per Foot | 4 |
Rated | Dry IP20 |
Warranty | 5 year |
CCTs | 2400K, 2700K, 3000K, 3500K, 4000K |
Certifications | ETL Listed, 1-Bin 1-Step, RoHS, Closet Rated Light Fixture NEC 410.2 and 410.16 |
Environment | Indoor |
Photometric Performance | Diffused 30° |
Length | Total Lumens | Luminous Efficacy | CRI Ra | CRI R9 | TM30 Rf | TM30 Rg |
---|---|---|---|---|---|---|
12" | 466 | 108 Lm/W | 98 | 97 | 94 | 100 |
24" | 892 | 100 Lm/W | 98 | 98 | 94 | 101 |
36" | 1302 | 95 Lm/W | 98 | 98 | 94 | 100 |
48" | 1586 | 92 Lm/W | 98 | 96 | 94 | 100 |
