SLIM-FLAT-01
SLIM-FLAT-01
Dimensions
Beam

SLIM-FLAT (01)

LEGACY PRODUCT: only available for specifications already submitted to QTL. For new specifications please see the THIN profile.
1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

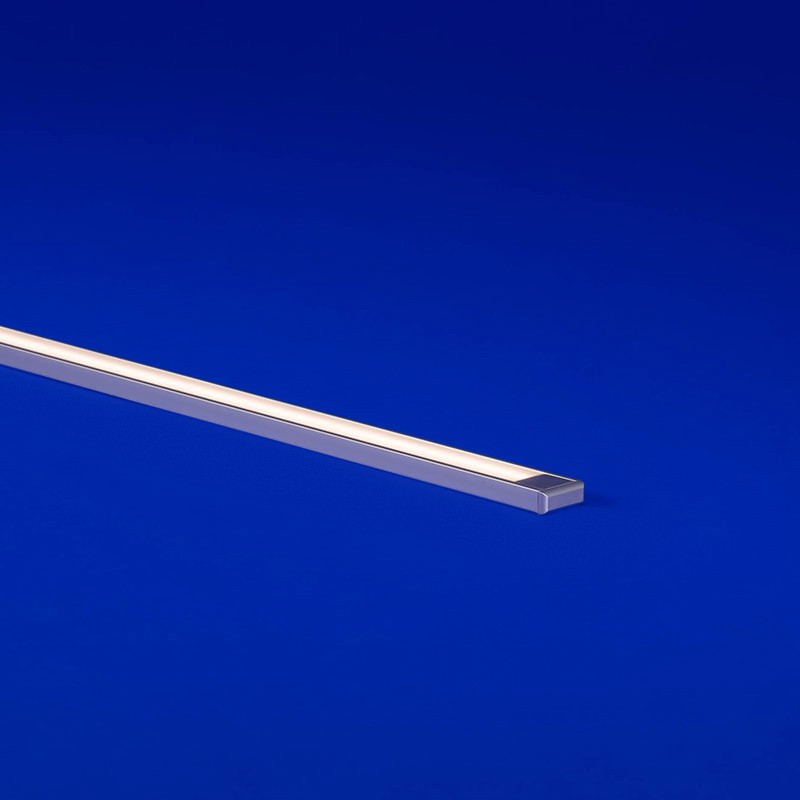

Ultra-low profile with clear or diffused lens

Sleek and contemporary, SLIM’s ultra-low profile design makes it a perfect fit for surface mount applications with limited space.

  • High-quality aluminum housings are available in satin, black, and bronze finishes with clear or diffused lens options
  • With a diffused lens, SLIM provides near diode-free results at full power
  • Produces a wide 98º beam angle perfect for cove, recessed, under cabinet, surface mount, and millwork lighting applications
  • Integrated end caps combined with an extruded aluminum housing give this fixture a polished modern look
  • A fully assembled fixture that is suitable for installation in the storage area of a clothes closet when using 4.0W/ft or less
  • Available in Static White, Static White High Efficacy Plus, Static White Individually Addressable, Warm Dim, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, and RGBW High Efficacy
More About SLIM-FLAT (01)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Mounting Stainless Steel Mounting Clip
Finish Satin, Black, Bronze, Custom
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Diffused
CCTs 2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
Dimensions 2.08" x 0.44"
Environment Indoor/Outdoor
