LALO
ESSENTIALS LALO-ENCAPSULATED (03)

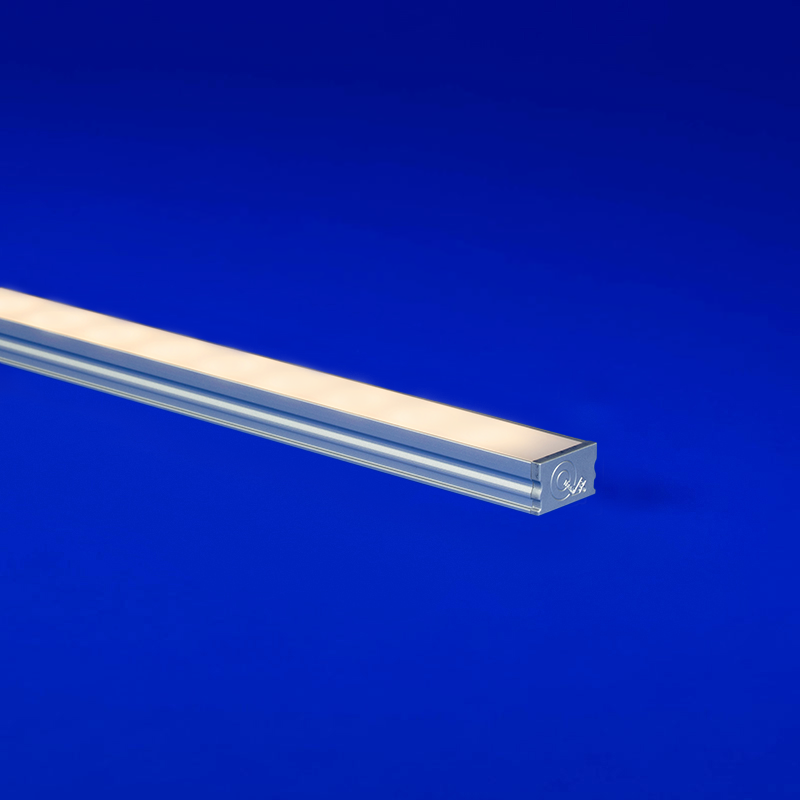

Surface Mount Linear LED Fixtures
Encapsulated with polyurethane for indoor and outdoor locations (IK10)
- Shallow, low-profile LED fixture for surface or recessed installations
- Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
- Optional plastic louver accessory available in white or black for added glare control
- Encapsulation available in clear or translucent
- Three mounting options
- Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
More About
ESSENTIALS LALO-ENCAPSULATED (03)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0 |
| Finish | Satin, Black, Custom |
| Mounting | Stainless Steel, Magnet Clip |
| Rated | Encapsulated IP67 |
| Warranty | 5 year |
| Photometric Performance | Clear, Translucent |
| LED Light Engine | Warm Dim, Static White, Static White High Efficacy, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW, RGBW High Efficacy |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Clear, Translucent |
| Lumens per Foot | 272 at SW 4.0 w/f |
| CCTs | 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, FWC |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6" |
| CRI | 98 at 3000K |
| Dimensions | 0.70" x 0.42" |
| Environment | Outdoor |
| Product Applications | Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting |
