ESSENTIALS VEVE-FLAT (01)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

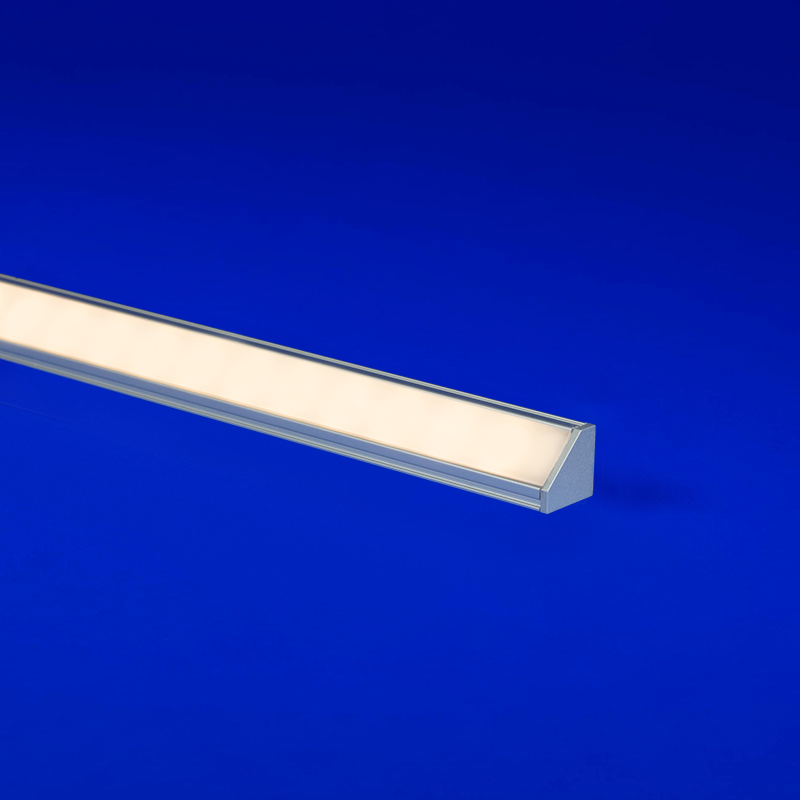

Offers four lens options with a sleek flat profile

• Versatile corner and surface mount linear LED fixture featuring a flat lens
• Personalize your lighting by choosing from diffused, polar, frosted, or clear lens options for varying diode
• Enjoy the flexibility of two cutoff options when using a clear lens.
• Effortless installation with various mounting options, including stainless steel clips, magnets, and low-profile magnet mounts.
• Features painted end caps to match extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet

More About ESSENTIALS VEVE-FLAT (01)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, 8.0, 9.0
Finish Satin, Black, Bronze, Custom
Mounting Stainless Steel, Magnet Clip
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Diffused, Polar, Frosted, Clear
LED Light Engine Static White, Static White High Efficacy, Static White Individually Addressable, Warm Dim, Static White High Efficacy Plus, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW, RGBW High Efficacy
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Frosted, Polar, Diffused
Lumens per Foot 310 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 92,93,98 at 3000K
Dimensions 0.71"x 0.71"
Environment Indoor/Outdoor
Product Applications Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting
