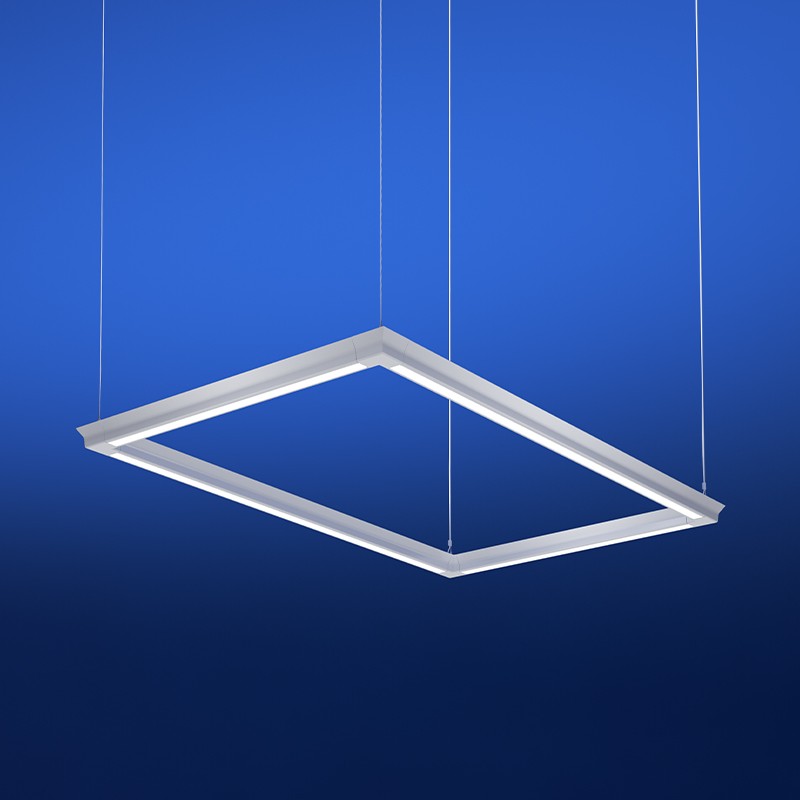

BOOM-RECTANGLE-SHAPE (01)
Suspended linear direct/indirect fixture
Impactful and highly customizable. With maximum fixture lengths of an impressive 12’, this fixture provides a long line of continuous light. Combine multiple fixtures to create squares, rectangles, U-shapes, L-Shapes, T-Shapes, and grids.
- Impactful and highly customizable
- Direct/indirect fixture provides primary illumination
- Create L-Shapes, T-Shapes, U-shapes, Crosses, Squares, and Rectangles
- Decorative panels and end caps match any interior
- Vast assortment of efficient light engines specifiable down to the inch
- Up and down optics allow for flexibility in design
More About
BOOM-RECTANGLE-SHAPE (01)
Technical Information
| LED Light Engine | Static White, Static White High Efficacy, Dynamic White (Tunable White), Dynamic White High Efficacy (Tunable White), Warm Dim, RGB |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 4000K, 1900/2700K, 1900/3000K, 2000/27000K, 2000/3000K, 2700/4000K, 2700/5500K |
| Downlight - Internal Lens | Grazer, 25°, 40°, 50° |
| Downlight - External Lens | Clear, Frosted, Diffused, Polar, Gel Insert |
| Uplight - Lens | 40°, 60°, 70°, 90°, 110°, 145°, 170°, Asymmetrical |
| Décor Panel Finishes | Satin, Black, Matte White Satin, Black, Bronze, Brass, Gunmetal, Blue, Matte White, White Oak, Teak, Black Oak, Walnut, RAL Custom |
| End Cap Styles | Corner |
| Power Feed | 22AWG or 24AWG Bare Wire 48" Length in White, Black, Silver with Cable Stay Clips in White, Black or Clear |
| End Caps | Gray, Black, White, Red, Yellow, Blue, Custom |
| Environment | Indoor |
| Finish | Anodized Satin, Black, Bronze, and Powder Coated Matte White, or RAL Custom |
| Warranty | 5 year |
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, 1.5HE, 3.0HE, 5.0HE, 6.0HE, 8.0HE, 9.0HE |
| Length | Maximum fixture length of 144". Minimum fixture length 24". Bare wire connection only. Length based on distance between suspension points. End cap choices impact overall length. Shop drawings required. See following pages for suspension kit options and order examples. |
| Photometric Performance | Grazer, Optical 25°, Optical 40°, Optical 50° |
| Dimensions | 3.17" x 2.41" x 1.78" |
| Accessories | Suspension Kit with Canopy and Hardware for Installation |
| Certifications | UL Listed, RoHS, JA8-2016, 1 Step 1 Bin, Declare, Red List Approved |
| Compatible App | SCENE Dongle |
| Controls | 1 or 2 circuits |
| CRI | 98-99 at 3000K |
| Product Applications | Linear Suspended |
