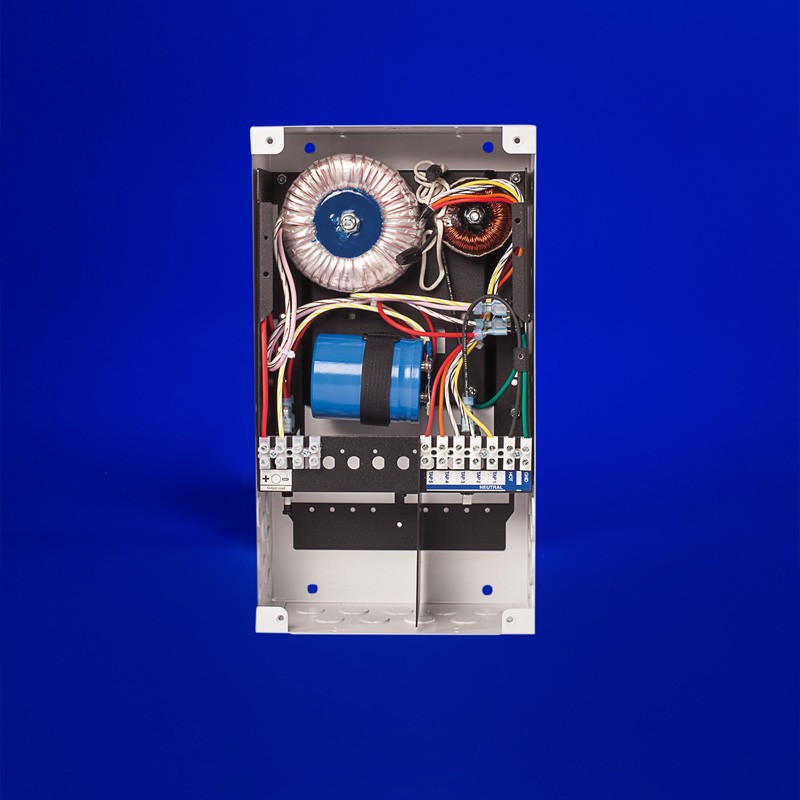

QTM-DC+CAP

60-120W at 12VDC | 60-200W at 24VDC

DC power supply designed for constant voltage LED products
Voltage options: 12 or 24VDC
Available capacity: 60 to 200 watts
Built-in capacitor to reduce the ripple effect
Can be controlled with a standard MLV (magnetic low voltage) dimmer with a neutral for flicker-free dimming
Construction: 18 gauge welded steel
Dimensions: 14.5”L x 8”W x 4”D
Features 21 knockouts for wiring connections
Includes a barrier plate to separate line and low voltage wiring compartments
Provides primary and secondary protection
Includes boost taps for compensating for voltage drop
Dimming levels to 0.1% (Dim to Dark)

More About QTM-DC+CAP

Environment	Indoor (Dry)
Primary Voltage	120V@60Hz, 220V@50/60Hz, 230V@50/60Hz, 240V@50/60Hz, 277V@60Hz220V, 230V, 240V not standard, call factory for pricing
Secondary Voltage	12VDC, 24VDC
Wattage	60DC+CAP, 100DC+CAP, 120DC+CAP, 200DC+CAP
Certifications	CE, CSA
Connectivity	ELDO
Dimming Performance	DIM TO BLACK
Dimming Protocol	Phase
Driver	Magnetic
