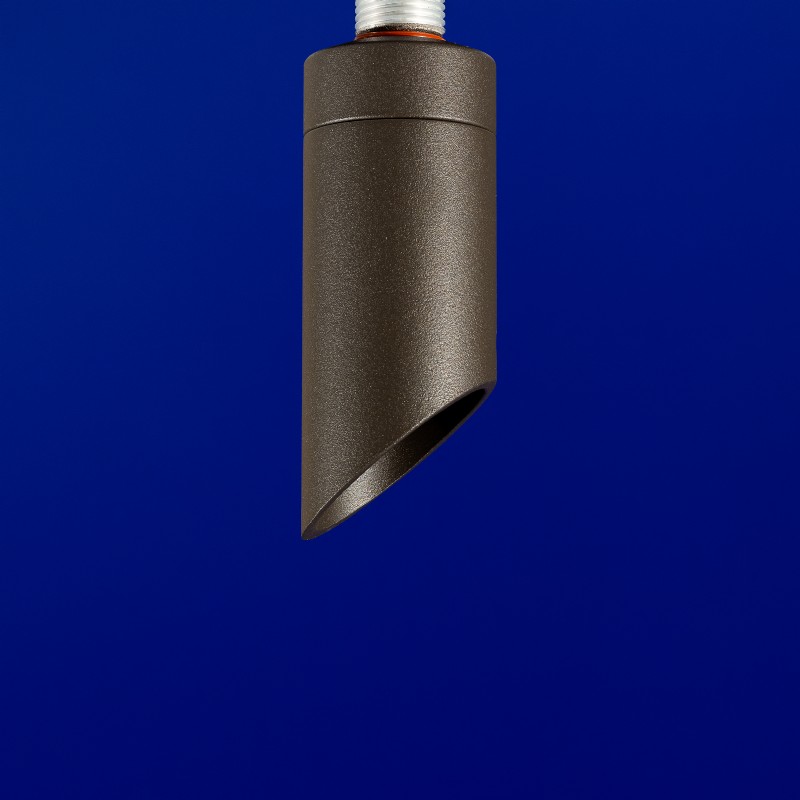

DL-8

12V MR11 20W, 2W Outdoor LED Down Light

12V MR11 20W, 2W Outdoor LED Down Light, 45° Angled Cap

6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
Remote transformer required.
Stainless steel hardware.
10” 18ga. Teflon coated wire leads.
Tempered clear glass lens.
Cap Style: 45° angled cap
High-temperature silicone O-ring seal used to seal the cap against the body.
Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
Input Voltage: 12V (remote transformer required).
Socket: GU4 Bi Pin Porcelain
Environment: wet listed
Specification-grade landscape lighting, wet-location luminaire for downlighting applications

Request Info Find a Rep

More About DL-8

Input Voltage	12V (remote transformer required)
Maximum Wattage	20 watt, 2 watt LED
Material	6061 Marine Grade Aluminum
Lens	Clear tempered glass lens
Environment	Wet Listed
Certifications	UL
Wiring	10” 18ga. Teflon coated wire leads..
Socket	GU4 Bi Pin Porcelain
Finish Options	Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White
Mounting Plate Options	4/0 Round Mounting Plate, 3/0 Round Mounting Plate, Surface MT-11, Surface MT-21
Stem Length Options	No Stem, 3" 6" 9" 12" 18"
Dimensions	1 5/8” dia. x 4” overall
Warranty	5 Year
Cap Style	45° Angled Cap
