Q-SET-2

12V or 24V AC LED Power Supply - 360W–600W
CSA Certified
Pool & Spa Rated
Buy American and Buy American Act Lighting Products
MadeDomesticForeignParts
Declare Label Approved Lighting
Red List Approved
10 Year Warranty

360 - 600W at 12 or 24VAC

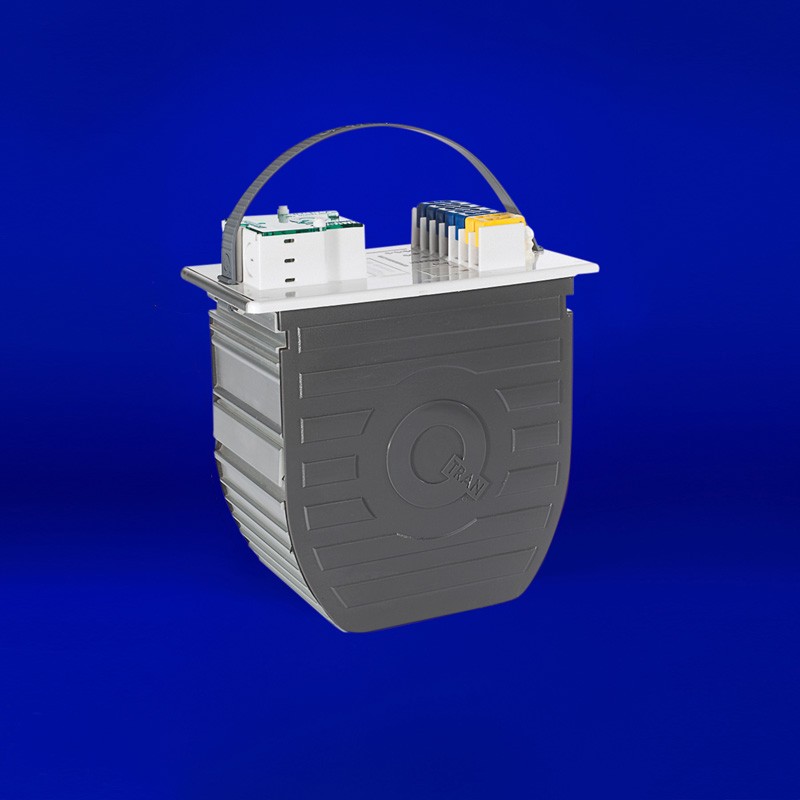

The Q-SET-2 is a UL listed direct burial power supply used with the Q-Vault-5, the industry’s only IP68 direct burial power supply enclosure. Available in 12VAC or 24VAC from 480W-600W. It comes with two secondary circuit breakers and has three UL listings; landscape lighting, pool & spa and low voltage luminaire power supply for both interior and exterior lighting. Five secondary taps are also provided to compensate for voltage drop. Loads may be connected to one or more of the secondary taps up to the full watt rating of the Q-SET.

Technical Information

Environment Indoor (Dry), Outdoor & Landscape
Primary Voltage 120V@60Hz, 220V@60Hz, 230V@50Hz, 240V@60Hz, 277V@60Hz
Secondary Voltage 12V, 24V
Wattage 360W, 480W, 600W
Certifications CSA, Pool & Spa Rated
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Magnetic
