Direct burial power supply for Q-Vault-5, the only IP68-rated enclosure in the industry. Available in 12VAC or 24VAC (60W-300W), it features a secondary circuit breaker, three UL listings for diverse applications, and five secondary taps for voltage
Direct burial power supply for Q-Vault-5, the only IP68-rated enclosure in the industry. Available in 12VAC or 24VAC (60W-300W), it features a secondary circuit breaker, three UL listings for diverse applications, and five secondary taps for voltage
UL-listed direct burial power supply designed for the unique IP68 Q-Vault-5 enclosure. Ranging from 60W-300W in 12VAC or 24VAC, it's equipped with a circuit breaker, multiple UL certifications, and five taps to adjust for voltage variations.
Q-SET-1
Q-SET-1
Voltage Drop Calculator

Q-SET-1

CSA Certified
Pool & Spa Rated
Buy American and Buy American Act Lighting Products
MadeDomesticForeignParts
Declare Label Approved Lighting
Red List Approved
10 Year Warranty

60 - 300W at 12 or 24VAC

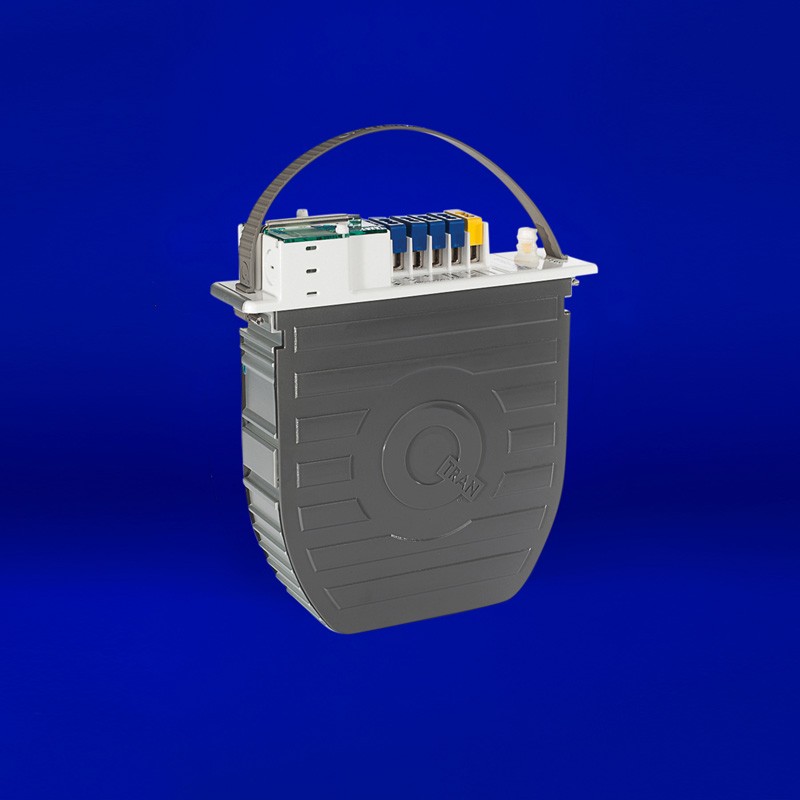

The Q-SET-1 is a UL listed direct burial power supply used with the Q-Vault-5, the industry’s only IP68 direct burial power supply enclosure. Available in 12VAC or 24VAC from 60W-300W. It comes with one secondary circuit breaker and has three UL listings; landscape lighting, pool & spa and low voltage luminaire power supply for both interior and exterior lighting. Five secondary taps are also provided to compensate for voltage drop. Loads may be connected to one or more of the secondary taps up to the full wattage rating of the Q-SETs.

More About Q-SET-1
Technical InformationVideosRelated Products

Technical Information

Environment Indoor (Dry), Outdoor & Landscape
Primary Voltage 120V@60Hz, 220V@60Hz, 230V@50Hz, 240V@60Hz, 277V@60Hz
Secondary Voltage 12V, 24V
Wattage 60W, 120W, 180W, 240W, 300W
Certifications CSA, Pool & Spa Rated
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Magnetic
