LALO

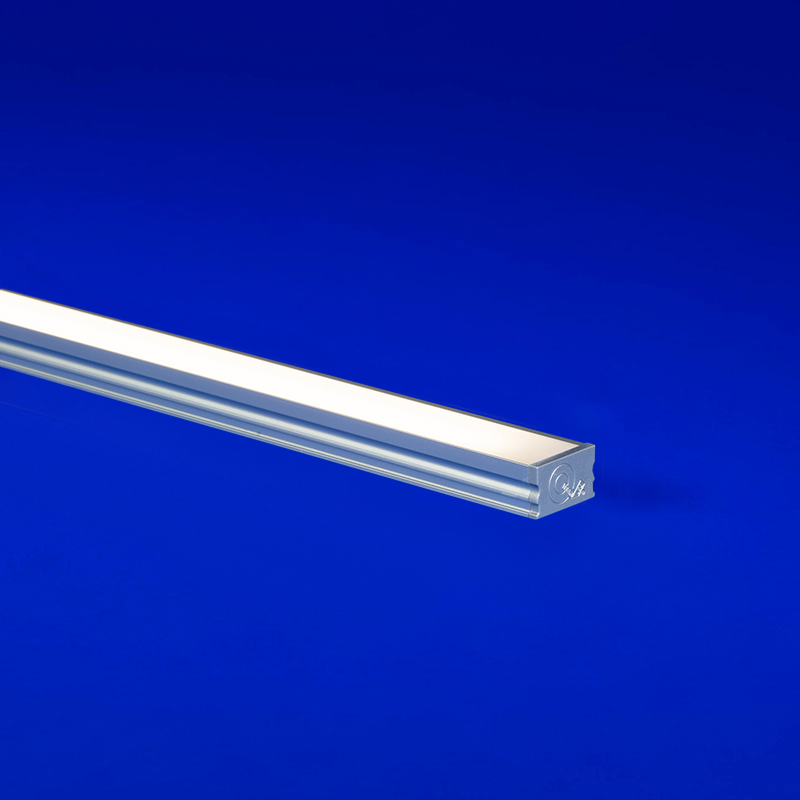

ESSENTIALS LALO-FLAT (01)
Surface Mount Linear LED FixturesOffers four lens options with a sleek flat profile
• Shallow, low-profile linear LED fixture for surface mount applications
• Choose from diffused, polar, frosted, or clear lens options for varying diode visibility and beam angles
• Effortless installation with various mounting options, including stainless steel clips, magnets, and low-profile magnet mounts.
• Features painted end caps to match LED extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet
More About
ESSENTIALS LALO-FLAT (01)
Technical Information
Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0 |
Finish | Satin, Black, Custom |
Mounting | Stainless Steel, Magnet Clip |
Rated | Dry IP20, Damp IP54, Wet IP67 |
Warranty | 5 year |
Photometric Performance | Diffused, Polar, Frosted, Clear |
LED Light Engine | Warm Dim, Static White, Static White High Efficacy, Static White Individually Addressable, Static White High Efficacy Plus, Dynamic White, Dynamic White High Efficacy, Warm Dim, Static Color, RGB, RGBW High Efficacy |
Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
Lenses | Clear, Frosted, Polar, Diffused |
Lumens per Foot | 310 at SW 4.0 w/f |
CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
Certifications | UL Listed, RoHS, JA8-2016, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16 |
Compatible App | SCENE Dongle |
Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6" |
CRI | 98 at 3000K |
Dimensions | 0.70" x 0.42" |
Environment | Indoor/Outdoor |
Product Applications | Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting |
