ESSENTIALS TORQ-ENCAPSULATED (03) DIMENSIONS
Dimensions
Calculate ESSENTIALS TORQ-ENCAPSULATED (03) Length

ESSENTIALS TORQ-ENCAPSULATED (03)

UL Listed LED lighting products
RoHS LED lighting product
Certified Wildlife Lighting
WhiteOptics
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

Encapsulated with polyurethane for indoor and outdoor locations (IK10)

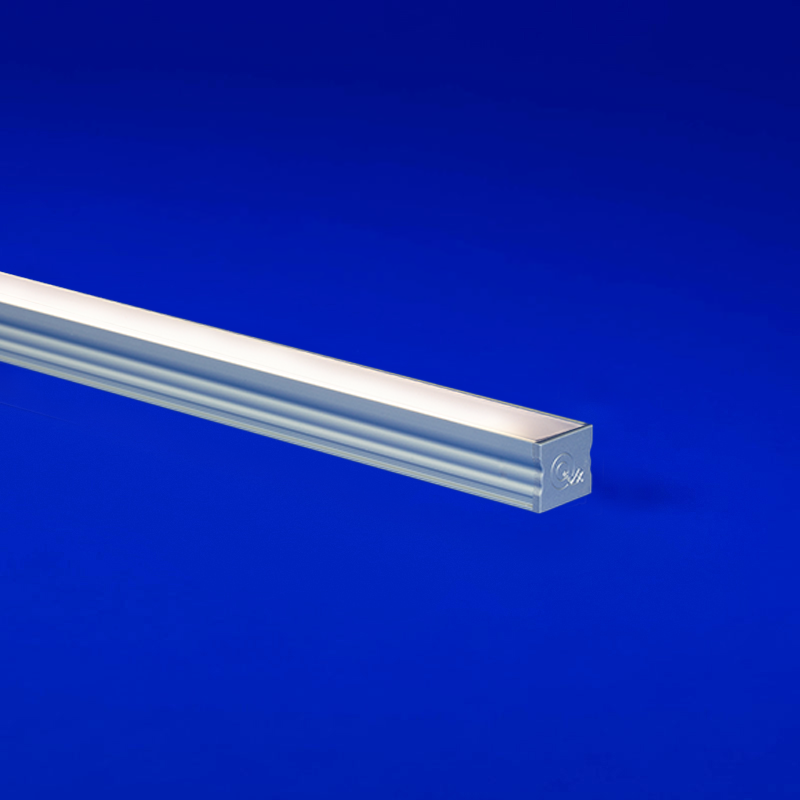

• Surface mount linear fixture
• Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
• Encapsulation available in clear or translucent
• Mounting options include stainless steel clips, magnets, and low-profile magnet mounts
• Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations

Calculate Length
More About ESSENTIALS TORQ-ENCAPSULATED (03)
Technical InformationVideosRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Finish Satin, Black, Bronze, Custom
Mounting Stainless Steel, Magnet Clip
Rated Encapsulated IK10
Warranty 5 year
Photometric Performance Clear, Transucent
LED Light Engine Warm Dim, Static White, Static White High Efficacy, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW High Efficacy
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Translucent
CCTs 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, Declare
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
Dimensions 0.70" x 0.60"
Environment Indoor/Outdoor
Product Applications Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting
