U BRACKETS

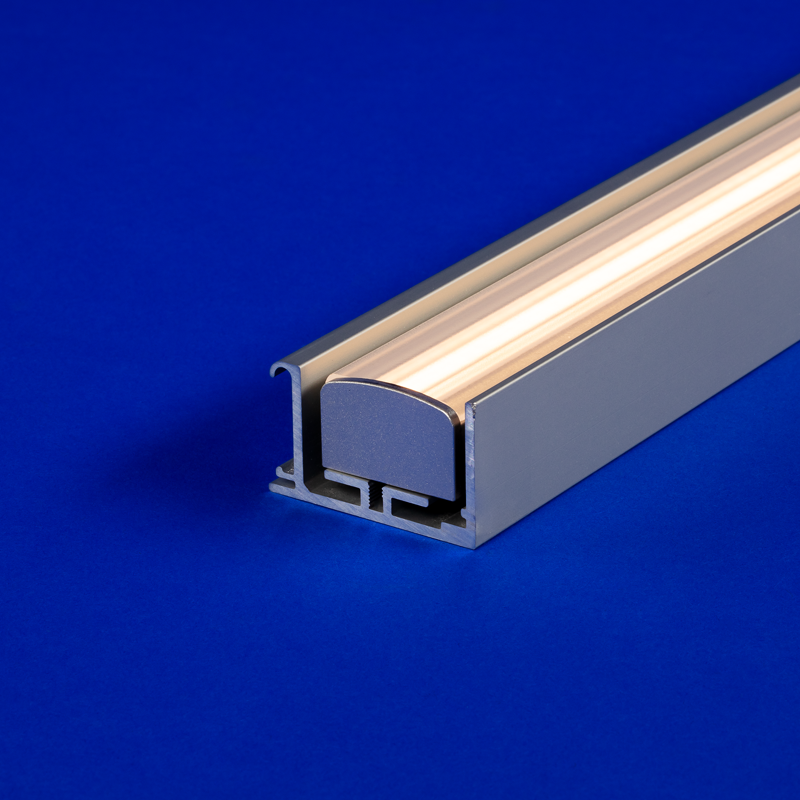

U BRACKET FOR ALUMINUM LED EXTRUSION
U Brackets offer a taller reveal to hide the fixtures and mounting hardware
- Brackets surface mount from the side, best for wall applications
- Bracket options have been specially designed to mount large family of fixtures
- Paintable finish
- Intended for indoor use only
- Durable anodized aluminum
Technical Information
| Finish | Satin, Black |
| Environment | Indoor |
| Length | 1” increments from 2” - 98.43” Tolerance +0.0”/-0.5” Light engine ordered separately |
| Material | Anodized aluminum |
| Dimensions | 1.59" x 1.40" x 1.25" |
Compatible Products
Compatible Products


ESSENTIALS LALO-OPTICS (02)
Linear fixture with optical lens for grazing


ESSENTIALS TORQ-ENCAPSULATED (03)
Encapsulated with polyurethane for indoor and outdoor locations (IK10)


ESSENTIALS TORQ-FLAT (01)
Offers four lens options with a sleek flat profile


ESSENTIALS TORQ-OPTICS (02)
Linear fixture with optical lens for grazing


ESSENTIALS VEVE-ENCAPSULATED (03)
Encapsulated with polyurethane for indoor and outdoor locations (IP67 & IK10)


ESSENTIALS VEVE-OPTICS (02)
Fixture with optical lens for grazing


MICRO 5 ALTA-OPTICS (02)
MICRO 5 fixture with grazer lens option


MICRO 5 ATOM-OPTICS (02)
MICRO 5 fixture with grazer lens option


OPTI
Mid-low profile LED aluminum extrusion


Q-CAP BOXA
Fully encapsulated flexible fixture with up/down bending capabilities, IK10 impact rated


Q-CAP KURV
Side bend flexible encapsulated LED fixture, IK10 impact rated


Q-CAP ZALA
Side bend static flexible encapsulated fixture, IK10 impact rated


VERS-ASYMMETRIC (09)
When surface-mounted, this VERSatile fixture directs the light in an asymmetrical direction without having to angle the fixture, making it an excellent solution for illuminating artwork, signage, or even washing a ceiling detail.


VERS-ENCAPSULATED (06)
Wet-rated VERSatile fixture encapsulated in polyurethane, IK10 impact rated


VERS-GRAZER (04)
Optically enhanced VERSatile fixture with grazing properties ranging from 12° to 36°


VERS-INSERT (08)
A VERSatile fixture that offers prismatic or batwing insert options


VERS-LOUVER (07)
A VERSatile fixture with an internal louver designed to eliminate glare.


VERS-PROUD (01)
Utilizes an extruded lens that sits proud of the fixture for maximum variations of LED sources
