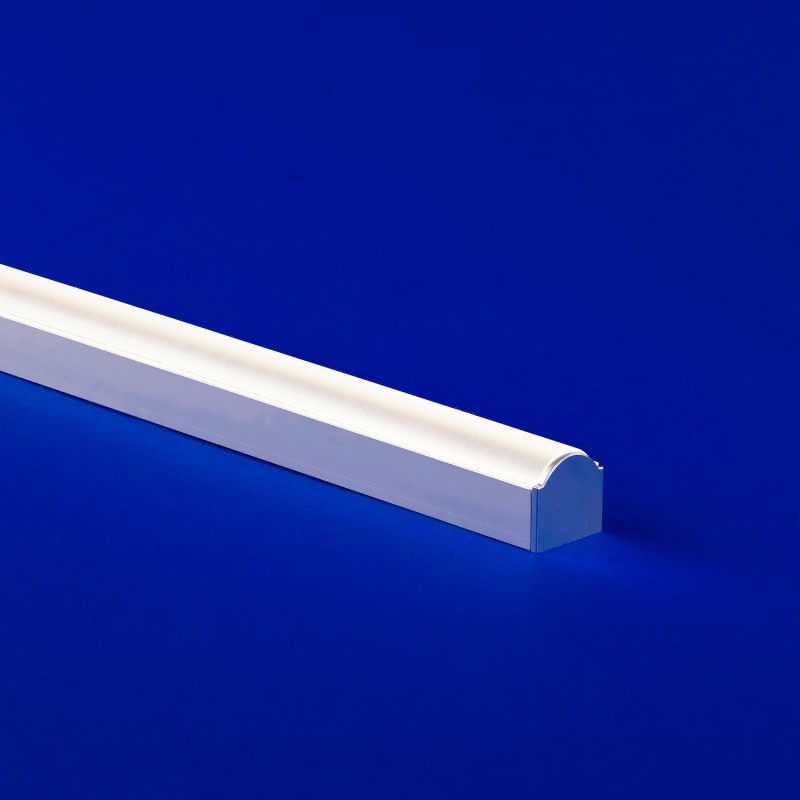

VERS-GRAZER (04) is optically enhanced versatile LED fixture with grazing properties ranging from 12° to 36°
VERS-GRAZER (04) is optically enhanced versatile LED fixture with grazing properties ranging from 12° to 36°
VERS-GRAZER (04) DIMENSIONS
beam-25
Dimensions-25D
04-L1
VERS-Grazer (04)

VERS-GRAZER (04)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
WhiteOptics
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

Optically enhanced VERSatile fixture with grazing properties ranging from 12° to 36°

• The high-quality lens features a proprietary diffusing agent for superior beam control and clean edges
• Features integrated metal endcaps
• Mounting options include a concealed or magnetic clip
• With an internal White Optics coating, the fixture achieves greater lumen output
• Durable anodized aluminum housings
• Consult factory for field assembly options
More About VERS-GRAZER (04)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0, HE9.0
Finish Satin, Black, Bronze, White, Custom
Mounting Concealed Clip, Magnetic
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Optical 25°, Grazer
LED Light Engine Warm Dim, Static White High-Efficacy, Dynamic White High-Efficacy, Static White, Dynamic White, Static Color, RGB, RGBW
Length Fixture length min 12", max 98" notincluding end caps. Consult factoryfor lengths under 12".
Lenses Optical
Lumens per Foot 372 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire 36", Connector 24", Connector 6"
CRI 98 at 3000K
Environment Indoor/Outdoor
External Louver White Plastic, Black Plastic, Satin Anodized AluminumBlack Anodized Aluminum, White Powder Coated Aluminum, No Louver
Product Applications Surface Mount, Cove Lighting, Millwork Lighting
