VERS-PROUD (01)

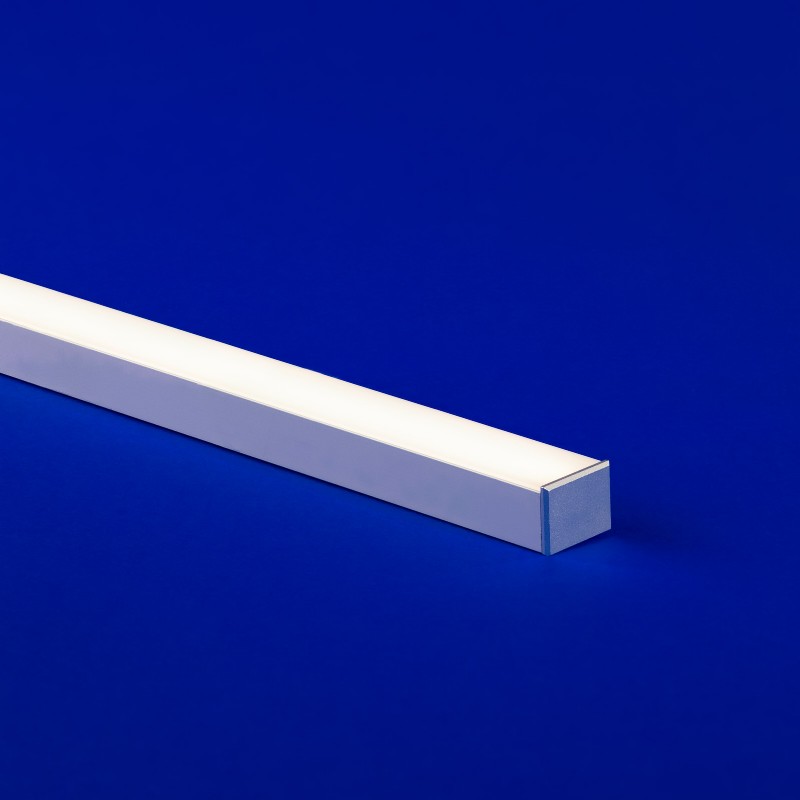

Surface Mount Linear LED FixturesUtilizes an extruded lens that sits proud of the fixture for maximum variations of LED sources
• The high-quality lens provides a delicate glow at the edges of the fixture, creating a slim line of light • Integrated metal endcaps combined with an extruded aluminum housing give this fixture a polished modern look • Optional External Louver Accessory offered in matte black or white finish • White Optics, an internal coating that results in greater lumen output, comes standard in all VERS fixtures. • Consult factory for field assembly options |
More About
VERS-PROUD (01)
Technical Information
Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0, HE9.0 |
Finish | Satin, Black, Bronze, White, Custom |
Mounting | Concealed Clip, Louver Concealed Clip, Magnet |
Rated | Dry IP20, Damp IP54, Wet IP67 |
Warranty | 5 year |
Photometric Performance | Diffused, Polar, Frosted |
LED Light Engine | Warm Dim, Static White High-Efficacy, Dynamic White High-Efficacy, RGBW High-Efficacy, Static White, Static Color, RGB, RGBW |
Length | Fixture length min 12", max 98" notincluding end caps. Consult factoryfor lengths under 12". |
Lenses | Frosted, Polar, Diffused |
Lumens per Foot | 348 at SW 4.0 w/f |
CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
Certifications | UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare |
Compatible App | SCENE Dongle |
Connector Wire | Bare Wire 36", Connector 24", Connector 6" |
CRI | 97-98 at 3000K |
Environment | Indoor/Outdoor |
External Louver | White Plastic, Black Plastic, Satin Anodized AluminumBlack Anodized Aluminum, White Powder Coated Aluminum, No Louver |
Product Applications | Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting |
