VEVE 03
VEVE 03
ESSENTIALS VEVE-ENCAPSULATED (03) DIMENSIONS

ESSENTIALS VEVE-ENCAPSULATED (03)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
Certified Wildlife Lighting
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

Encapsulated with polyurethane for indoor and outdoor locations (IP67 & IK10)

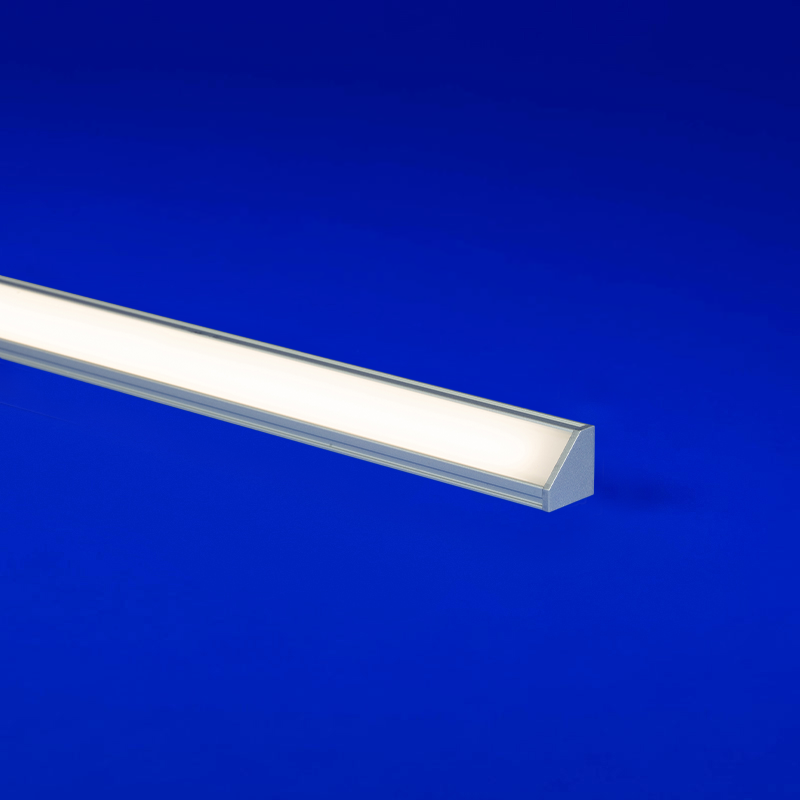

• Corner and surface mount linear fixture with flat lens
• Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
• Encapsulation available in clear or translucent
• Mounting options include stainless steel clips, magnets, and low-profile magnet mounts
• Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations

More About ESSENTIALS VEVE-ENCAPSULATED (03)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, 8.0, 9.0
Finish Satin, Black, Bronze, Custom
Mounting Stainless Steel, Magnet Clip
Rated Encapsulated IK10
Warranty 5 year
Photometric Performance Clear, Translucent
LED Light Engine Static White, Static White High Efficacy, Static White Individually Addressable, Warm Dim, Static White High Efficacy Plus, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW, RGBW High Efficacy
Length Fixture length min 12", max 98" not including end caps. Consult factory for lengths under 12".
Lenses Encapsulated Clear, Encapsulated Translucent
Lumens per Foot 235 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, Closet Rated Light Fixture Light Fixtured NEC 410.2 and 410.6, Declare
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 96-97 at 3000K
Dimensions 0.71"x 0.71"
Environment Indoor/Outdoor
Product Applications Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting
