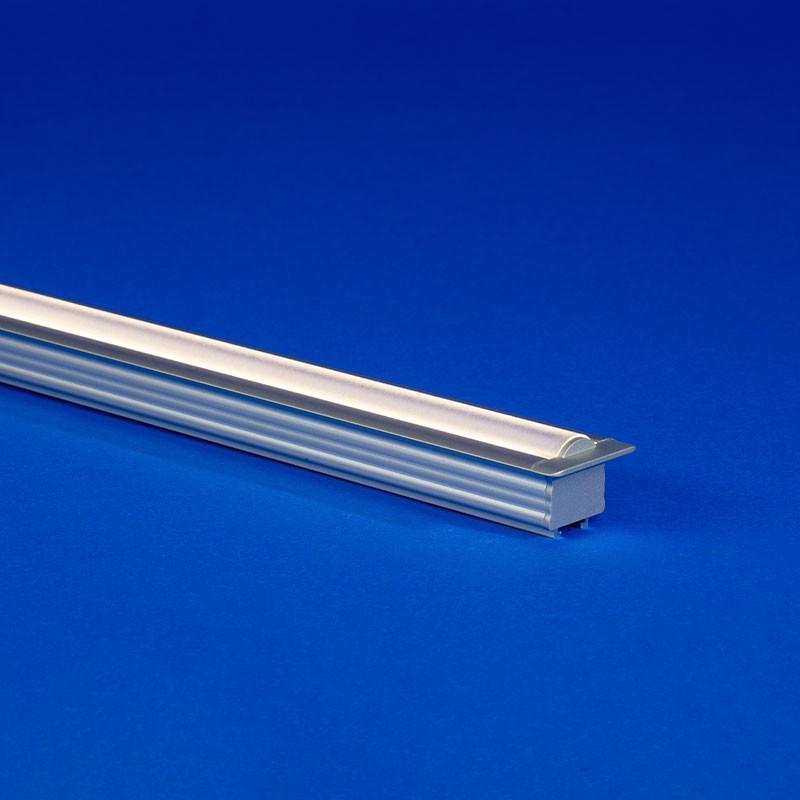

EMBD-OPTICS (02) is a flanged LED fixture with optical beam control
EMBD-OPTICS (02) is a flanged LED fixture with optical beam control
EMBD OPTICS DIMENSIONS

ESSENTIALS EMBD-OPTICS (02)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
Recessable
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

Flanged fixture with optical beam control

• Recessed LED fixture designed for dryall and millwork installations
• Choose from 12°, 14°, 20°, 30°, 45° or 60° beam angles for precise illumination
• Mounting options include spring or magnet mounting clips
• Features painted end caps to match LED extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet
More About ESSENTIALS EMBD-OPTICS (02)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, 1.5HE, 3.0HE, 6.0HE, 3.0HE+, 6.0HE+
Finish Satin, Custom
Mounting Spring Clip, Magnetic Clip, Magnetic Mount Accessory
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Optical 12°, Optical 14°, Optical 20°, Optical 30°, Optical 45°, Optical 60°
LED Light Engine Static White, Static White High Efficacy, Static White High Efficacy Plus, Static White Individually Addressable, Dynamic White, Dynamic White High Efficacy, Warm Dim, Static Color, RGB, RGBW
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Frosted, Polar, Diffused
Certifications UL Listed, RoHS, JA8-2016, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 98 at 3000K
Dimensions 1.14" x 0.83"
Environment Indoor/Outdoor
Product Applications Linear Recessed, Cove Lighting
