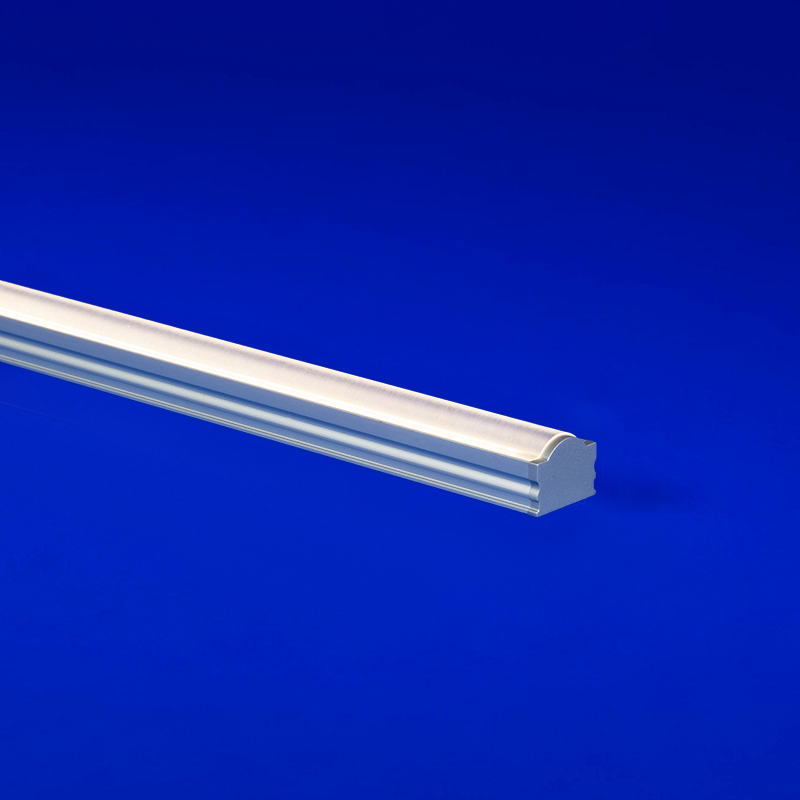

LALO-OPTICS (02) is a linear LED fixture with optical lens for grazing for lighting direct and indirect surface mount applications
LALO-OPTICS (02) is a linear LED fixture with optical lens for grazing for lighting direct and indirect surface mount applications
ESSENTIALS LALO-OPTICS (02) DIMENSIONS
CONFIGURE ESSENTIALS LALO-OPTICS (02)
Calculate ESSENTIALS LALO-OPTICS (02) Length

ESSENTIALS LALO-OPTICS (02)

Surface Mount Linear LED Fixtures
1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
5 Year Warranty
Declare Label Approved Lighting
Red List Approved
Buy American Act Compliant SW, SW-HE, DW-HE
Build America, Buy America Compliant SW, SW-HE-DW-HE Only

Linear fixture with optical lens for grazing

  • Shallow, low-profile linear LED fixture for surface or recessed installations
  • Achieve precise lighting with a 17° beam angle for focused illumination
  • Ideal solution for grazing applications
  • Optional plastic louver accessory available in white or black for added glare control
  •  Mounting options include stainless steel clips, magnets, and low-profile magnet mounts
  • Features painted end caps to match LED extrusion finish
  •  Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
  • Suitable for exterior use when specified as wet
CONFIGURE ESSENTIALS LALO-OPTICS (02)
Calculate Length
More About ESSENTIALS LALO-OPTICS (02)
Technical InformationVideosRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Finish Satin, Black, Custom
Mounting Stainless Steel, Magnet Clip
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Optical 17°
LED Light Engine Warm Dim, Static White, Static White High Efficacy, Static White High Efficacy Plus, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Optical
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, JA8-2016, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 98 at 3000K
Dimensions 0.70" x 0.54"
Environment Indoor/Outdoor
Product Applications Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting
