LATO-ENCAPSULATED (03) is an encapsulated shallow LED fixture designed for surface recessed mounting applications
LATO-ENCAPSULATED (03) is an encapsulated shallow LED fixture designed for surface recessed mounting applications
ESSENTIALS LATO-ENCAPSULATED (03) DIMENSIONS
Dimensions
Beam
Calculate ESSENTIALS LATO-ENCAPSULATED (03) Length

ESSENTIALS LATO-ENCAPSULATED (03)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
WhiteOptics
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

Encapsulated with polyurethane for indoor and outdoor locations (IK10)

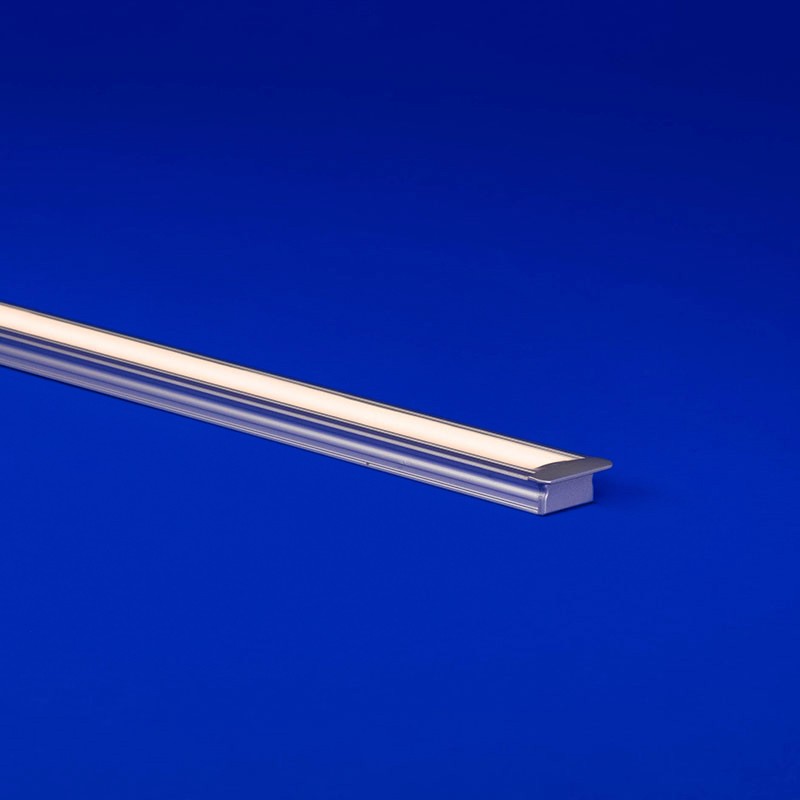

Designed to disappear. LATO is a shallow flanged fixture that is designed for surface or recessed mounting applications so the light source merges with the surface.

• Shallow flanged recessed fixture
• Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
• Encapsulation available in clear or translucent
• Flanged design merges light source with surface
• Stainless steel mounting clips
• Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
Calculate Length
More About ESSENTIALS LATO-ENCAPSULATED (03)
Technical InformationRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Mounting Stainless Steel Clip
Finish Satin, Black, Bronze, Custom
Rated Encapsulated IK10
Warranty 5 year
LED Light Engine Static White, RGB, RGBW, Static Color, Dynamic White High Efficacy (Tunable White), Warm Dim
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Encapsulated Clear, Encapsulated Translucent
CCTs 2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
Dimensions 1.0" x 0.41"
Environment Indoor/Outdoor
Product Applications Surface Mount, Linear Recessed, Millwork Lighting
