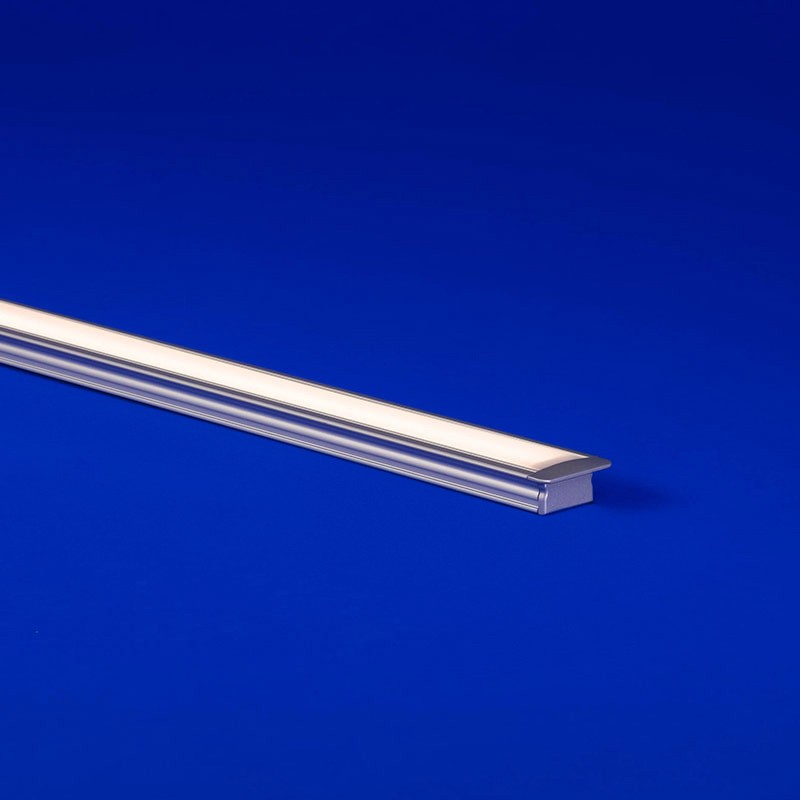

LATO-FLAT (01) is a shallow flanged LED fixture for surface and recess mounting
LATO-FLAT (01) is a shallow flanged LED fixture for surface and recess mounting


1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

Shallow flanged fixture for surface and recess mounting

Designed to disappear. LATO is a shallow flanged fixture that is designed for surface or recessed mounting applications so the light source merges with the surface.

• Shallow flanged recessed LED fixture
• Choose from diffused, polar, frosted, or clear lens options for varying diode visibility and beam angles
• The flanged design seamlessly merges the light source with the surface for a sleek aesthetic
• Features stainless steel mounting clips
• Features painted end caps to match LED extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet


Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Mounting Stainless Steel Clip
Finish Satin, Black, Bronze, Custom
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Diffused, Polar, Frosted, Clear
LED Light Engine Static White, RGB, RGBW High Efficacy, Static Color, Static White Individuallly Addressable, Dynamic White High Efficacy (Tunable White), Warm Dim
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Frosted, Polar, Diffused, White Optics
Lumens per Foot 310 at SW 4.0 w/f
Material Aluminum Housing
CCTs 2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 92, 98 at 3000K
Dimensions 1.0" x 0.41"
Environment Indoor/Outdoor
Product Applications Surface Mount, Linear Recessed, Millwork Lighting
