Flexible DMX LED Power Supply with prewired modules and IC rating
Flexible DMX LED Power Supply with prewired modules and IC rating
Voltage Drop Calculator

QT-CAB-eLED+DMX

24V DC LED Power Supply - 100W–800W
CSA Certified
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting
IES Progress Report Selection 2025

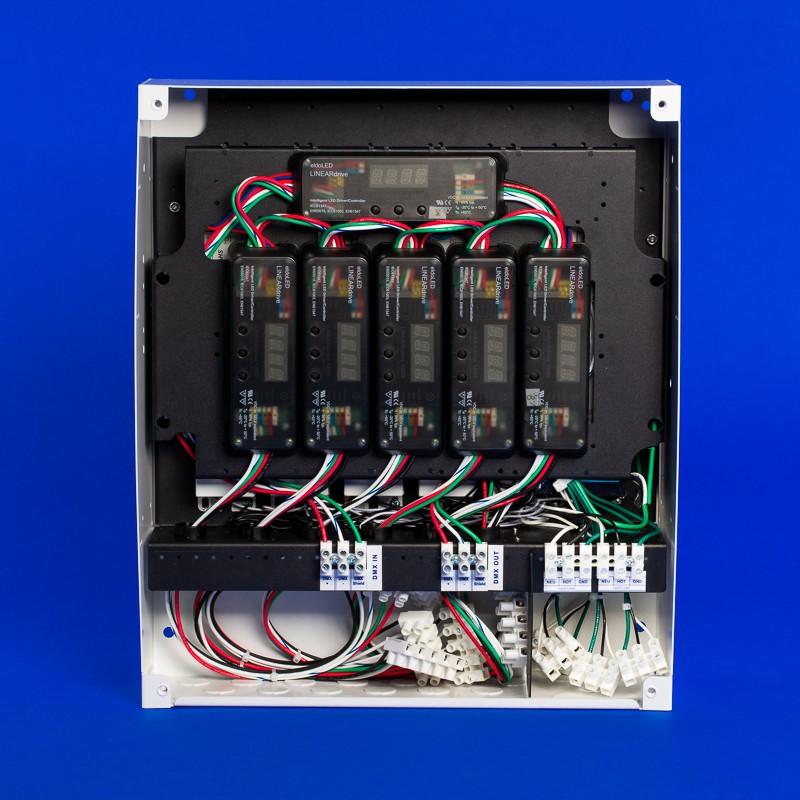

IC-rated DC power supply supports DMX control, uses a 100W LED driver with eldoLED LINEARdrive, and offers 100-800 watt capacity with prewired modules and recessed or surface mounting options

  • Surface mount or recessed, interior rated LED power supply center.
  • Type IC rated.
  • Utilizes a 100W constant voltage LED Driver and the LINEARdrive DMX decoder from eldoLED.
  • Capable of handling up to 800W of power and control within a single enclosure, offering flexibility in lighting applications.
  • Designed to accommodate RGB or RGBW wires for versatile lighting options.
  • Provides plenty of flexibility and comes with all modules prewired together with terminal blocks for landing your LED and control
    wires.
  • Suitable for indoor use with various lighting applications.
Voltage Drop Calculator
More About QT-CAB-eLED+DMX
Technical InformationRelated Products

Technical Information

Primary Voltage Universal (120-277V)
Secondary Voltage 24VDC
Wattage Options 1 100W Driver, 2 100W Drivers, 3 100W Drivers, 4 100W Drivers, 5 100W Drivers, 6 100W Drivers, 7 100W Drivers, 8 100W Drivers
Control DMX
Mounting Recessed, Surface Mounted
Color White, Black
Environment Dry, Damp
Warranty 5 Year
Assembly Factory Assembled, Not Installed
Certifications CSA, RoHS, Declare
