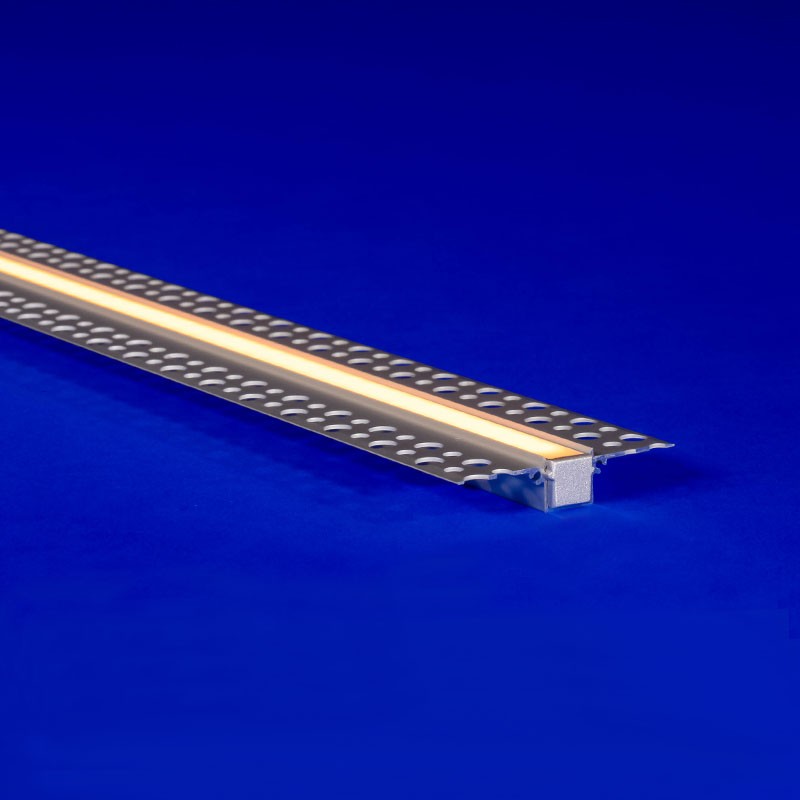

MICRO 5 SLITE-ENCAPSULATED (03)
Polyurethane filled MICRO 5 fixture with an IK10 rating
- MICRO 5 Series linear LED fixture designed to provide superior light performance and uniformity with discreet integration into drywall
- Two-piece mud-in fixture
- Suitable for indoor and outdoor locations
- 48% smaller than QTL's standard size extrusion (MDIN)
- Delivers equivalent efficacy as standard size fixtures
- Once installed, its wings are covered with tape and compound to create a seamless look
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 2.0 watts or less per foot per NEC regulations
More About
MICRO 5 SLITE-ENCAPSULATED (03)
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Custom |
| Mounting | Stainless Steel Clip |
| Rated | Encapsulated IK10 |
| Warranty | 5 year |
| Photometric Performance | Clear, Translucent |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Clear, Transclucent |
| Lumens per Foot | 185 at SW 4.0 w/f |
| CCTs | 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, Declare |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6", Not soldered |
| CRI | 98 at 3000K |
| Dimensions | 2.08" x 0.44" |
| Environment | Indoor/Outdoor |
| Product Applications | Drywall |
