Low profile LED light fixture for grid celling application with sleek flat lens for full luminosity
Low profile LED light fixture for grid celling application with sleek flat lens for full luminosity


1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

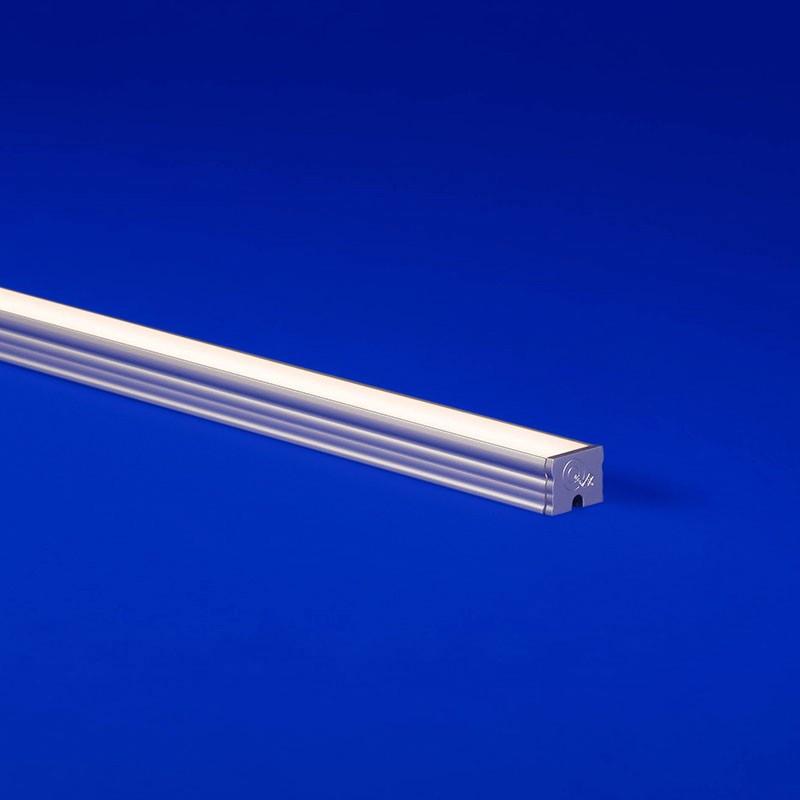

Low profile fixture for grid ceiling applications

Designed to be discreet. TALO’s modern design and sleek flat lens promote full luminosity.

• Linear LED fixture designed for surface mount and grid ceiling applications
• Choose from diffused, polar, frosted, or clear lens options for varying diode visibility and beam angles

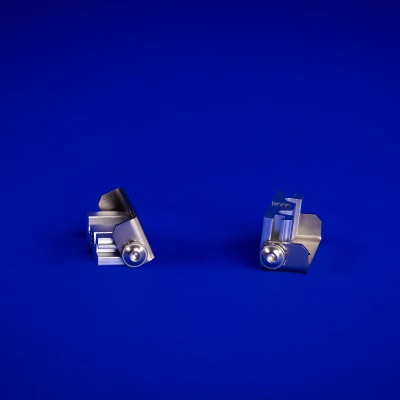

• Mounting options include hidden stainless steel clip and plastic T-bar clip
• Features painted end caps to match extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet


Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Mounting Hidden Stainless Steel Clip, Plastic T-Bar Clip
Finish Satin, Black, Custom
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Clear, Frosted, Polar, Diffused
LED Light Engine Static White, Static White High Efficacy, RGB, RGBW High Efficacy, Static Color, Static White Addressable, Dynamic White High Efficacy (Tunable White), Warm Dim
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Frosted, Polar, Diffused
Lumens per Foot 313 at SW 4.0 w/f
Material Aluminum Housing
CCTs 2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, Closet Rated Light Fixture NEC 410.2 and 410.16, RoHS, Declare
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 98 at 3000K
Dimensions 0.63" X 0.63"
Environment Indoor/Outdoor
Product Applications Surface Mount
