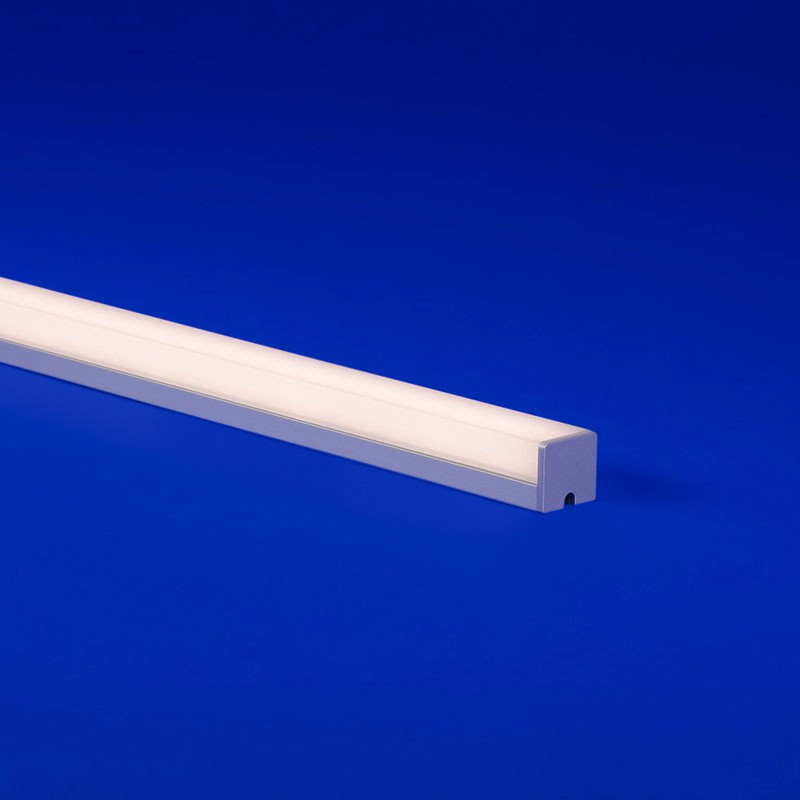

TRE3-FLAT (01) is LED light fixture with three-sided diffused lens for LED free direct view applications

Calculate ESSENTIALS TRE3-FLAT (01) Length

ESSENTIALS TRE3-FLAT (01)

Request Info Find a Rep

Three-sided diffused lens

The perfect combination of simplicity and utility. Highlight architectural details with three-sided illumination to create eye-catching lines of light.

• Linear fixture designed for surface mount and grid ceiling applications
• Offered in a satin finish with a diffused lens
• Highlight architectural details with three-sided illumination to create eye-catching lines of light.
• Mounting options include hidden stainless steel clip and plastic T-bar clip
• Elevate the aesthetics with painted end caps that match the extrusion finish.
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet

Calculate Length

More About ESSENTIALS TRE3-FLAT (01)

Technical Information Related Products

Technical Information

Watts per Foot	1.5, 3.0, 4.0, 5.0, 6.0
Mounting	Hidden Stainless Steel Clip, Plastic T-Bar Clip
Finish	Satin, Custom
Rated	Dry IP20, Damp IP54, Wet IP67
Warranty	5 year
Photometric Performance	Diffused
LED Light Engine	Static White, Static White High Efficacy, RGB, RGBW High Efficacy, Static Color, Static White Addressable, Dynamic White High Efficacy (Tunable White), Warm Dim
Length	Fixture length min 12", max 98.43" not including end caps. Consult factory for lengths under 12"
Lenses	Diffused
Lumens per Foot	283 at SW 4.0 w/f
CCTs	2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K
Certifications	UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare
Compatible App	SCENE Dongle
Connector Wire	Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI	92,98 at 3000K
Dimensions	0.88" x 0.84"
Environment	Indoor/Outdoor
Product Applications	Surface Mount
