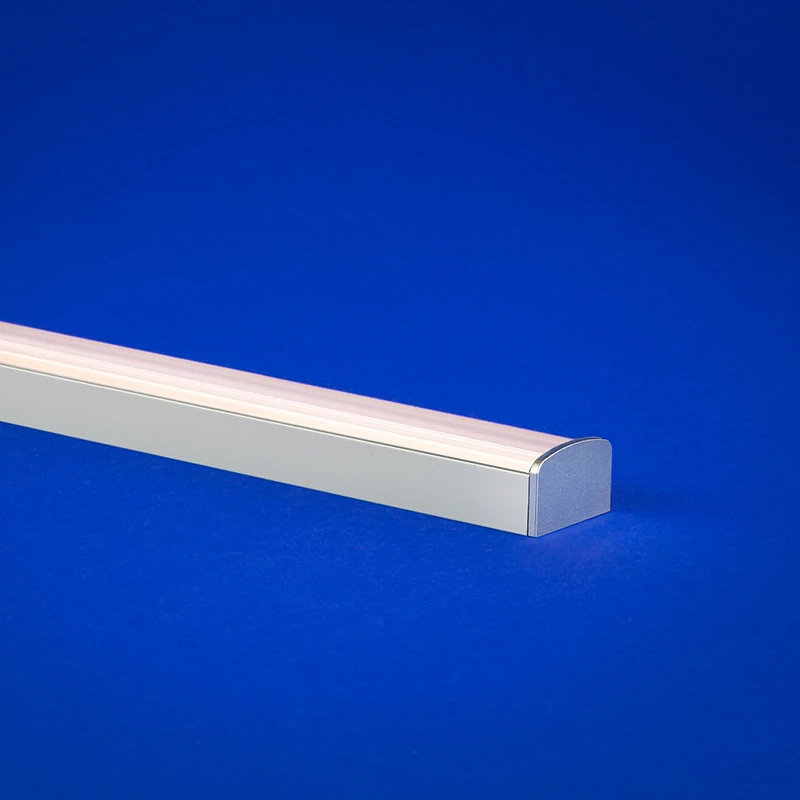

OPTI-OPTICS (02)
Surface Mount Linear LED Fixtures
9 optical lens options with precision beam control
- Versatile surface and recessed mount linear LED fixture with an advanced assortment of optics
- Choose from nine lens options: 40°, 60°, 70°, 90°, 110°, 155°, 180°, Asymmetric, and Forward Throw lens options for varying diode visibility and beam angles
- Easy installation with options for concealed or magnet clip
- Features integrated metal endcaps
- Durable anodized aluminum housings
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
- Consult factory for field assembly options
More About
OPTI-OPTICS (02)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0 |
| Finish | Satin, Black, White, Custom |
| Mounting | Stainless Steel Clip, Magnet Clip, Magnet Mount Accessory |
| Rated | Dry IP20 |
| Warranty | 5 year |
| Photometric Performance | Optical 40°, Optical 60°, Optical 70°, Optical 90°, Optical 110°, Optical 155°, Optical 180° |
| LED Light Engine | Static White, Static White HE, Static White HE+, Dynamic White HE, Warm Dim, Static Color, RGB, RGBW |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Optical |
| Material | Aluminum Housing |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16 |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 36", Connector 24", Connector 6" |
| CRI | 92,98 at 3000K |
| Dimensions | 1.0" x 0.47" |
| Environment | Indoor |
| Product Applications | Surface Mount |
