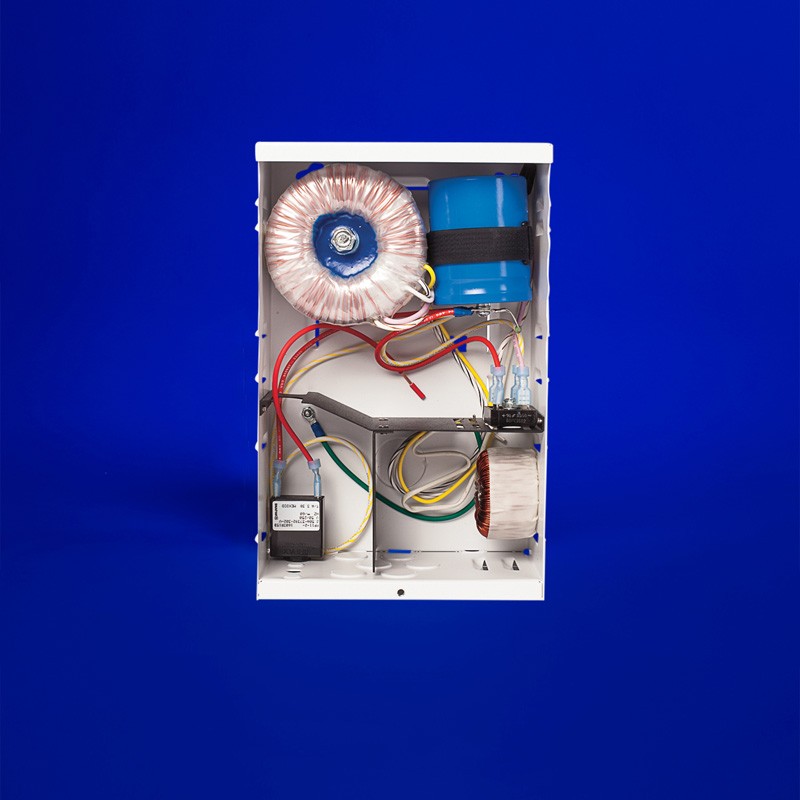

UL listed power supply, converting AC to DC with options of 60W at 12VDC or up to 100W at 24VDC. Features a robust rectifier, three tap selections, and a built-in capacitor ensuring flicker-free output. Ideal for dimming LED fixtures
UL listed power supply, converting AC to DC with options of 60W at 12VDC or up to 100W at 24VDC. Features a robust rectifier, three tap selections, and a built-in capacitor ensuring flicker-free output. Ideal for dimming LED fixtures
Q6M-DC CAP
Voltage Drop Calculator

Q6M-DC+CAP

Conformite Europeenne
CSA Certified
RoHS LED lighting product
Buy American Act Lighting
MadeDomesticForeignParts
Build America, Buy America
10 Year Warranty

60W at 12VDC | 60 or 100W at 24VDC

  • UL Listed rectified power supply
  • Converts AC to DC
  • Includes: robust rectifier and three tap selections
  • Power handling capabilities:
    • Up to 60 watts for 12VDC
    • Up to 100 watts at 24VDC
  • Built-in capacitor that eliminates ripple or flicker.
  • Best solution to power and dim LED fixtures
  • Dimming levels to 0.1% (Dim to Dark)
More About Q6M-DC+CAP
Technical InformationVideosRelated Products

Technical Information

Environment Indoor (Dry)
Primary Voltage 120V@60Hz, 277V@60Hz
Secondary Voltage 12VDC, 24VDC
Wattage 60DC+CAP, 100DC+CAP
Certifications CE, CSA, RoHS
Connectivity GRE
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Magnetic
