MICRO 5 POP FLANGE-FLAT (01)

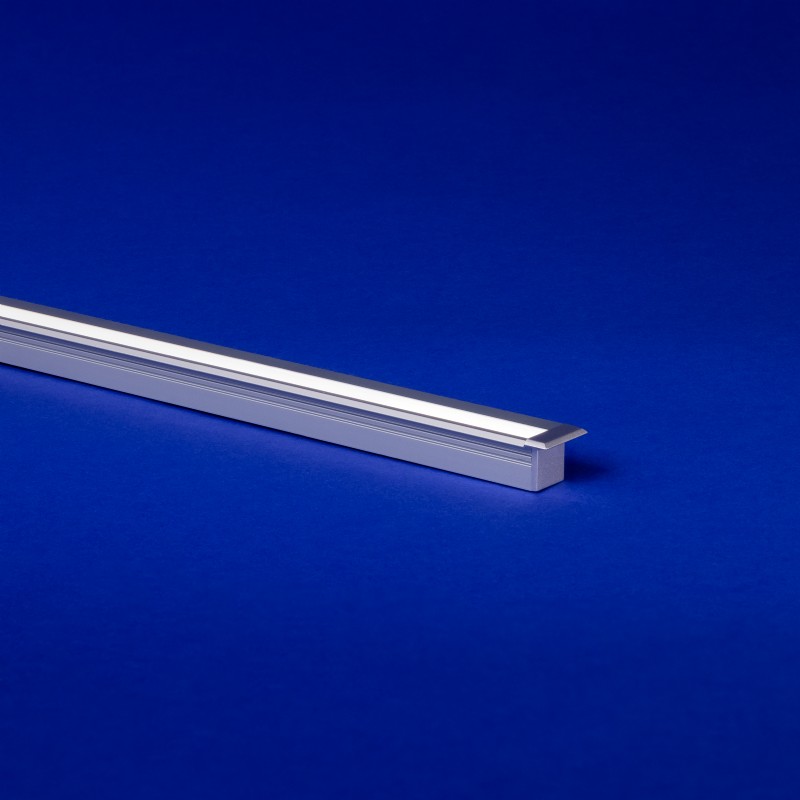

24VDC Linear LED Fixtures - Recessed ApplicationsRecessable MICRO 5 flanged fixture with a 75° focused beam 20° off-nadir
- MICRO 5 Series linear LED flanged fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
- Asymmetric fixture with a 75° focused beam 20° off-nadir
- Ideal for recessed installations that call for low-profile light in small areas
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 2.0 watts or less per foot per NEC regulations
- Consult factory for field assembly options
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Black, Bronze, White, Custom |
| Mounting | Magnet, Silicone, Clip |
| Rated | Dry IP20, Damp IP54 |
| Warranty | 5 year |
| Photometric Performance | Diffused |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Fixture length min 12”, max 98.43” not including end caps. |
| Lenses | Diffused, Polar |
| Lumens per Foot | 195 at SW 4.0 w/f |
| CCTs | 1800K,2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, EPD Verified Product |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6", Not soldered |
| CRI | 97-98 at 3000K |
| Environment | Indoor |
| Product Applications | Recessed, Millwork |
| Dimensions | .45" x .47" |
