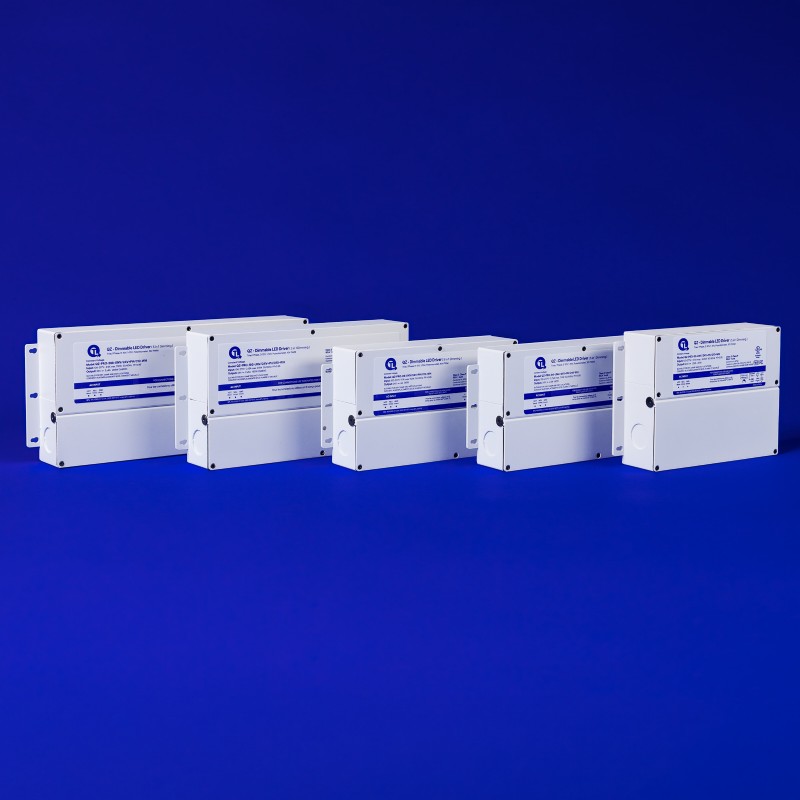

QZ-PRO-PH/0-10V
QZ-PRO-PH/0-10V
QZ-PRO-PH/0-10V
New

QZ-PRO-PH/0-10V

24V DC LED Power Supply - 30W-288W
FCC tested
UL Listed LED lighting products
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting

Class 2 LED drivers with integrated potentiometer to boost or dim voltage, controlling light levels at the fixture.

  • Versatile Class 2 LED driver controlled with phase (forward or reverse) or 0-10V dimming, down to 0.1%
  • Integrated potentiometer boosts output up to 26V to compensate for voltage drop, maintaining 24V at the fixture
  • Adjust output locally as low as 17V to fine-tune brightness for each power supply and customize light level across multiple drivers on the same switch leg.
  • Pulse Width Modulation (PWM) output provides smooth flicker-free dimming
  • Available in various wattage options: 30W, 60W, 96W, 192W, and 288W
  • Housing is listed for indoor or outdoor use
More About QZ-PRO-PH/0-10V
Technical InformationRelated Products

Technical Information

Primary Voltage Universal (120V-277V)
Secondary Voltage 24V
Wattage 30W, 60W. 96W, 192W, 288W
Warranty 5 Year
Certifications UL Listed, FCC, RoHS, Declare
Color White (Standard), Black powder coat finish
Dimming Performance DIM 0.1%
Dimming Protocol Phase, 0-10V
Mounting Surface Mount (Horizontal or Vertical)
Environment Indoor/Outdoor, Wet Listed
