MICRO 5 ATOM-OPTICS (02)

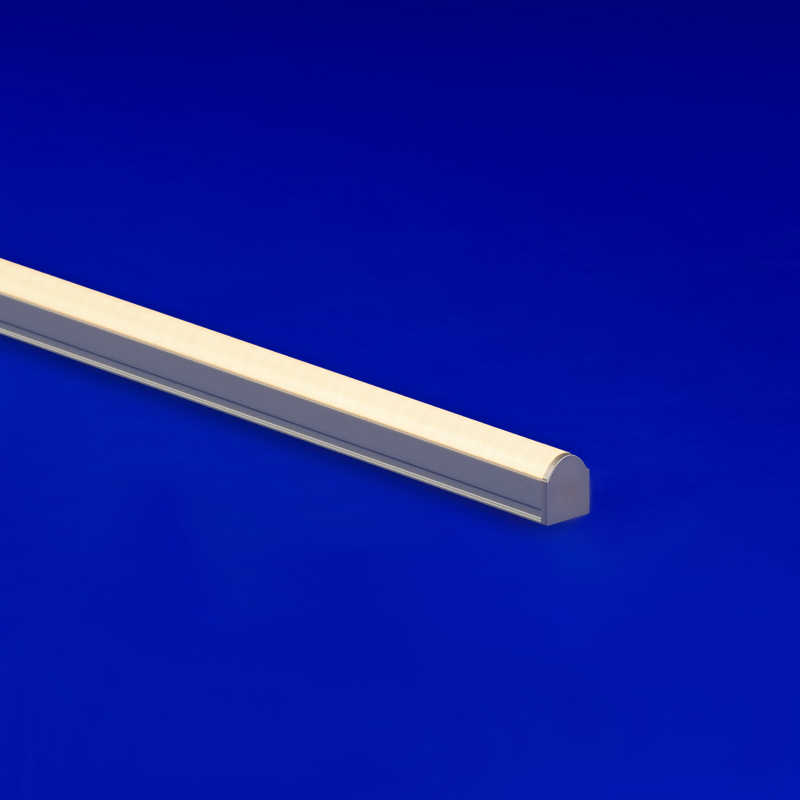

24VDC Linear LED Fixtures - Surface & Recessed ApplicationsMICRO 5 fixture with grazer lens option
- MICRO 5 Series linear LED fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
- Features an optically enhanced lens to produce a 20° beam
- 60% smaller than ESSENTIALS-TORQ
- Delivers equivalent efficacy as standard size fixtures
- Ideal for surface mounted or recessed installations that call for low-profile light in small areas
- Features a stainless steel mounting clip, making installation and repositioning effortless
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 2.0 watts or less per foot per NEC regulations
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Black, Custom |
| Mounting | Stainless Steel Clip |
| Rated | Dry IP20, Damp IP54 |
| Warranty | 5 year |
| Photometric Performance | Optical 20° |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Optical 20° |
| Lumens per Foot | 291 at SW 4.0 w/f |
| CCTs | 1800K,2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, JA8-2019, 1 Step 1 Bin, BAA, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6", Not soldered |
| CRI | 98 at 3000K |
| Dimensions | 0.51" x 0.44" |
| Environment | Indoor/Outdoor |
| Product Applications | Surface Mount, Recessed, Millwork |
Videos
Compatible Products
Compatible Products

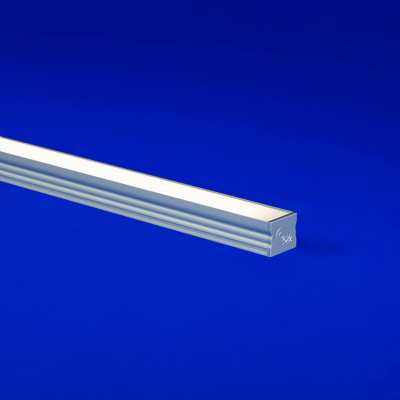

ESSENTIALS TORQ-FLAT (01)
Offers four lens options with a sleek flat profile


iQ-PH+QD1
80W at 24VDC with a fully potted design, providing 0-100% flicker-free phase dimming

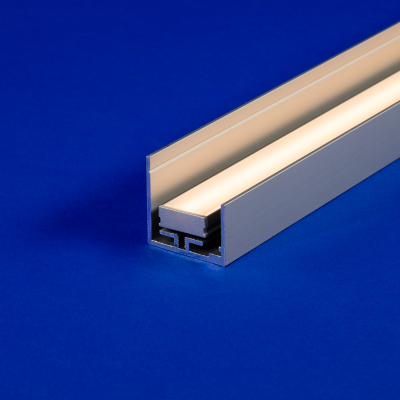

J BRACKETS
J Brackets feature a slight reveal to hide the fixture


L BRACKETS
L Brackets have no reveal, creating the least amount of cutoff


MICRO 5 ATOM-ENCAPSULATED (03)
Polyurethane filled MICRO 5 fixture with IP67 rating

Q-DIM
Integrated Dimmer + Driver.


Q-MINI-J
UL Listed, mini junction box


Q-MINI-J5
UL Listed, water resistant mini junction box


Q6M-DC+CAP
60W at 12VDC | 60 or 100W at 24VDC


QT-CAB-eLED+0-10V
UL-listed, IC-rated enclosure supports 0-10V dimming, 12VDC/24VDC products, and can be recessed or surface mounted, handling up to 10 drivers and dimming modules


QT-CAB-eLED+0-10V-AWN
UL-listed, IC-rated enclosure supports 0-10V dimming, Lutron Athena Wireless Nodes, and up to 6 drivers, allowing easy programming and seamless connection to Lutron controls.


QT-CAB-eLED+DALI-DT6
IC-rated LED power supply cabinet supports up to 7 drivers with DALI 2 DT6 decoders, prewired for up to 7 zones, and can be recessed or surface mounted for interior use


QT-CAB-eLED+DALI-DT6-AWN
IC-rated LED power supply cabinet supports up to 5 drivers with DALI DT-6 decoders, Lutron Athena Wireless Nodes for easy programming, and offers 100-500 watt capacity with recessed or surface mounting options


QT-CAB-eLED-ND
IC-rated DC power supply cabinet provides 12V or 24V constant voltage output with 60-1000 watts of power, designed for interior use


QT-CAB-QZ-PH/0-10V
IC-rated housing supports 0-10V dimming to 0.1%, 24VDC products, and up to 7 drivers, with recessed or surface mounting for interior use


QTM-DC+CAP
60-120W at 12VDC | 60-200W at 24VDC


QTM-eLED(E)
40-200W at 24VDC


QTM-eLED+0-10V
60W-500W surface mount LED power supply center


QTM-eLED+0-10V-AWN
60W-300W LED power supplies with factory-installed Lutron Athena Wireless Nodes


QTM-eLED+DALI-DT6
100-400W at 24VDC LED power supplies with DALI 2 DT-6 Decoders


QTM-eLED+DALI-DT6-AWN
100W-200W LED power supplies designed for DALI 2 applications


QTM-eLED+DMX
100-400W at 24VDC


QTM-eLED-ND
DC power supply center with constant voltage output of 12 or 24VDC


QZ-BOWTIE+DIMMER
Class 2 LED driver providing smooth, flicker-free dimming down to 0.1% with phase (forward or reverse) or 0-10V controls, delivering a 24VDC constant voltage output


QZ-DALI-DT6
96W LED power supply features 1 channel output


QZ-DMX
96W at 24VDC LED Driver


QZ-ND
30W-288W Class 2 LED drivers | 24VDC constant voltage output


QZ-PRO-PH/0-10V
Class 2 LED drivers with integrated potentiometer to boost or dim voltage, controlling light levels at the fixture.


QZ-STICK-PH/0-10V
Slender and versatile 96W Class 2 LED power supply


QZLP
30W-60W at 24VDC LED Driver

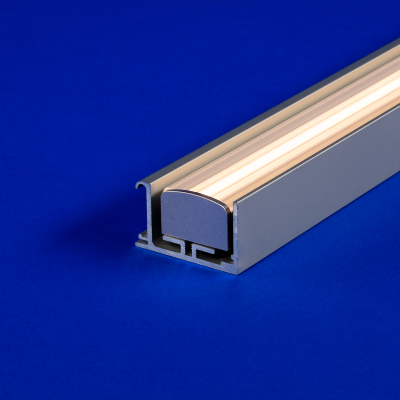

U BRACKETS
