ALTA-OPTICS (02) is a MICRO 5 linear fixture with a grazer lens option
ALTA-OPTICS (02) is a MICRO 5 linear fixture with a grazer lens option
MICRO 5 ALTA OPTICS DIMENSIONS
MICRO 5 ALTA-OPTICS

MICRO 5 ALTA-OPTICS (02)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
Title 24 Lighting
NEC Closet Certified
5 Year Warranty
Declare Label Approved Lighting
Red List Approved

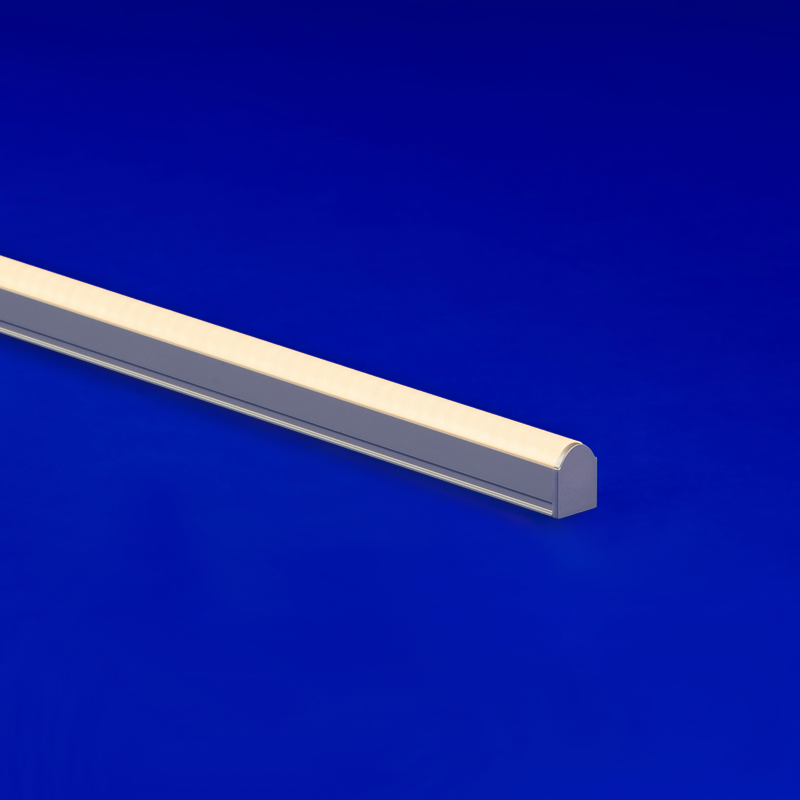

MICRO 5 fixture with grazer lens option

  • MICRO 5 Series linear LED fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
  •  Features an optically enhanced lens
  •  55% smaller than ESSENTIALS-TALO
  •  Delivers equivalent efficacy as standard size fixtures
  •  Ideal for surface mounted or recessed installations that call for focused low-profile light
  •  Mounting options include stainless steel, magnet or T-bar clips, making installation and repositioning effortless
  •  Suitable for installation in the storage area of a clothes closet when specified with LEDs at 2.0 watts or less per foot per NEC regulations
More About MICRO 5 ALTA-OPTICS (02)
Technical InformationVideosRelated Products

Technical Information

Watts per Foot 1.0, 2.0, 4.0
Finish Satin, Black, Custom
Mounting Stainless Steel Clip, Magnetic Clip
Rated Dry IP20, Damp IP54
Warranty 5 year
Photometric Performance Optical 30°
LED Light Engine Static White, Dynamic White, RGB
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Optical
Lumens per Foot 346 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, JA8-2019, 1 Step 1 Bin,Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6", Not soldered
CRI 98 at 3000K
Dimensions 0.57" x 0.44"
Environment Indoor/Outdoor
Product Applications Surface Mount, Millwork Lighting
