ALTA Drop Lens
ALTA Drop Lens
MICRO 5 ALTA-DROP (04) DIMENSIONS

MICRO 5 ALTA-DROP (04)

Linear Fixtures
1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
NEC Closet Certified
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

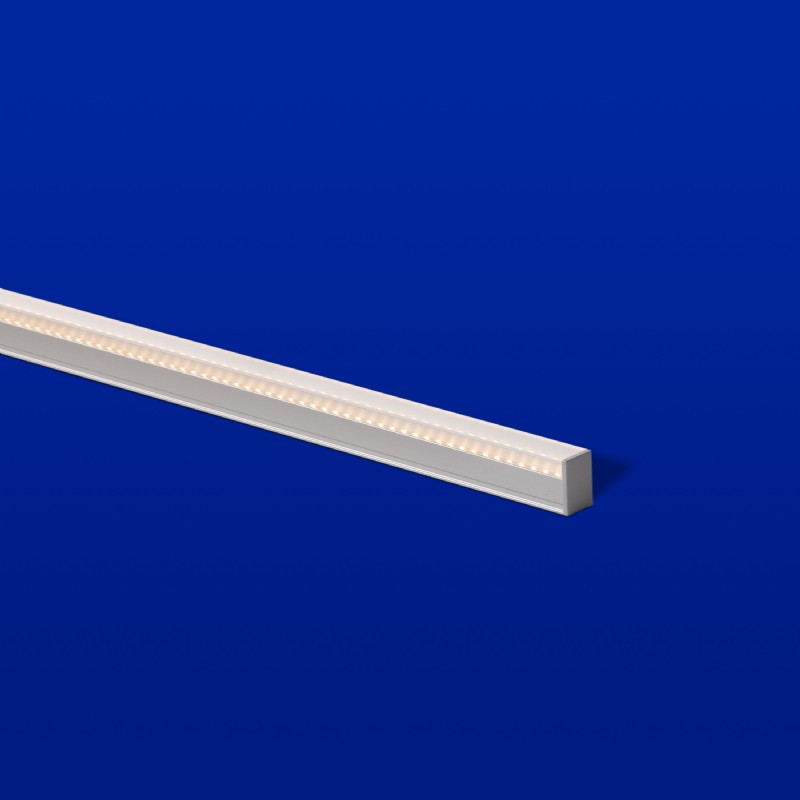

MICRO 5 Series fixture with a sleek profile and three sided dropped lens

  •  MICRO 5 Series linear LED fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
  •  Sleek flat profile and three-sided dropped lens
  •  55% smaller than ESSENTIALS-TALO
  •  Delivers equivalent efficacy as standard size fixtures
  •  Choose from diffused or frosted lens options for varying diode visibility and beam angles
  •  Ideal for surface mounted or recessed installations that call for low-profile light in small areas
  •  Mounting options include a mounting clip, magnet option, or TBAR clip, making installation and repositioning effortless
  •  Suitable for installation in the storage area of a clothes closet when specified with LEDs at 2.0 watts or less per foot per NEC regulations
More About MICRO 5 ALTA-DROP (04)

Technical Information

Watts per Foot 1.0W, 2.0W, 4.0W
Finish Satin, Black, Custom
Mounting Stainless Steel, Magnet, 9/16" Flat or Tegular TB-Grid, 15/16" Flat or Tegular TB-Grid
Rated Dry IP20, Damp IP54
Warranty 5 year
Photometric Performance Diffuse, Frosted
LED Light Engine Static White, RGB, Dynamic White
Length Fixture length min 12”, max 98.43” not including end caps. Tolerance +0 – 1/8”. Consult factory for lengths under 12".
Lenses Diffused, Frosted
Lumens per Foot 262 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K 2700K, 3000K, 3500K, 4000,
Certifications UL Listed, RoHS, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Compatible App SCENE Dongle
Connector Wire Bare Wire (Standard 24"), Barrel, Connector 6", Connector 24"
CRI 97-98 at 3000K
Product Applications Surface Mount, Recessed, Millwork
Environment Indoor
Dimensions .63"x.44"
