60-200W exterior-rated DC power supply for flicker-free dimming across 12VDC/24VDC. Suitable for submersibles and LEDs; pair with a forward-phase dimmer.
60-200W exterior-rated DC power supply for flicker-free dimming across 12VDC/24VDC. Suitable for submersibles and LEDs; pair with a forward-phase dimmer.
Voltage Drop Calculator

QOM-DC+CAP

CSA Certified
Buy American Act Lighting
MadeDomesticForeignParts
10 Year Warranty

60 or 120W at 12VDC | 60-200W at 24VDC

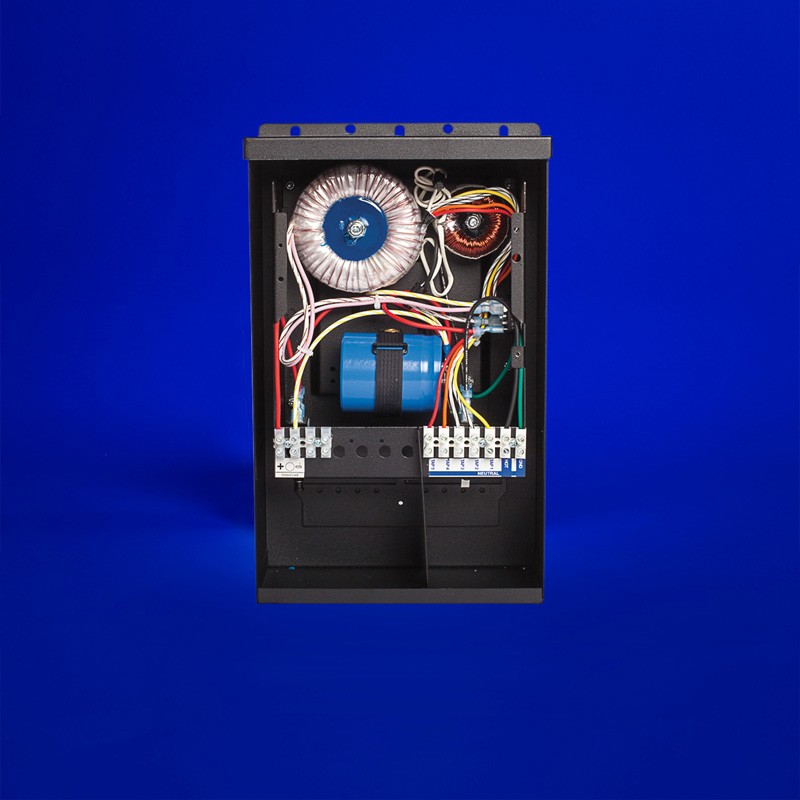

Surface mount, exterior rated, rectified DC power supply with built-in capacitor. The QOM-DC CAP is SCA listed with exterior and submersible luminaries and LED luminaries, as well as submersible pumps. It is ideal for applications that require perfect dimming or dimming without flicker. When dimming, use a forward-phase dimmer with a neutral wire.

More About QOM-DC+CAP
Technical InformationVideosRelated Products

Technical Information

Environment Indoor (Dry), Outdoor (Wet)
Primary Voltage 120V@60Hz, 220V@50/60Hz, 230V@50/60Hz, 240V@50/60Hz, 277V@60Hz220V, 230V, 240V not standard, call factory for pricing
Secondary Voltage 12VDC, 24VDC
Warranty 10 year
Wattage 60DC+CAP, 100DC+CAP, 200DC+CAP
Certifications CSA
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Magnetic
