VERS-Louver Suspended
VERS-Louver Suspended
VERS-suspended Louver
VERS Suspended Interior 1
VERS Suspended Interior 2
VERS Suspended Interior 3
VERS Suspended Interior 4
VERS Suspended Interior 5
VERS-LOUVER-SK (07) DIMENSIONS

VERS-LOUVER-SK (07)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
WhiteOptics
5 Year Warranty
Buy American Act Lighting

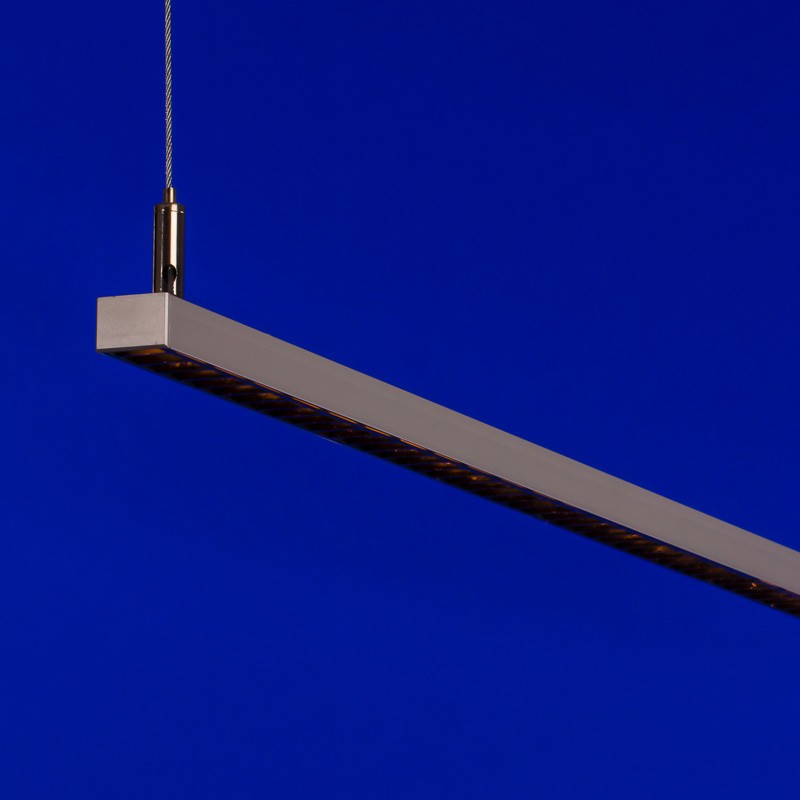

A VERSatile fixture with a black louver that is designed to eliminate glare

• 80 Suspension Kit configurations allow fixture to be seamlessly incorporated into any interior
• Create long, continuous lines of light with easy-to-use inline bracket and double feed joiner connectors
• A custom-sized black louver fits snugly above a low-profile clear or diffused lens in the interior of the housing
• Features integrated metal endcaps and durable anodized aluminum housings
• With standard internal White Optics coating, fixtures achieve greater lumen efficacies
• Consult factory for field assembly options

More About VERS-LOUVER-SK (07)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE5.0, HE6.0
Finish Satin, Black, Bronze, White, Custom
Mounting Suspended Bracket
Rated Dry IP20, Damp IP54
Warranty 5 year
Photometric Performance Diffused, Clear
LED Light Engine Static White High-Efficacy, Dynamic White High-Efficacy, Static White, Dynamic White, Warm Dim, Static Color, RGB
Length Fixture length min 24", max 98" notincluding end caps.Tolerance +0 – 1/8". Consult factoryfor lengths under 24".Shop drawings required for runlengths over 8ft.
Lenses Clear, Diffused
Lumens per Foot 169 at SW 4.0 w/f
Accessories VERS Suspension Kit
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire 36"
CRI 97-98 at 3000K
Environment Indoor/Outdoor
Product Applications Linear Suspended
