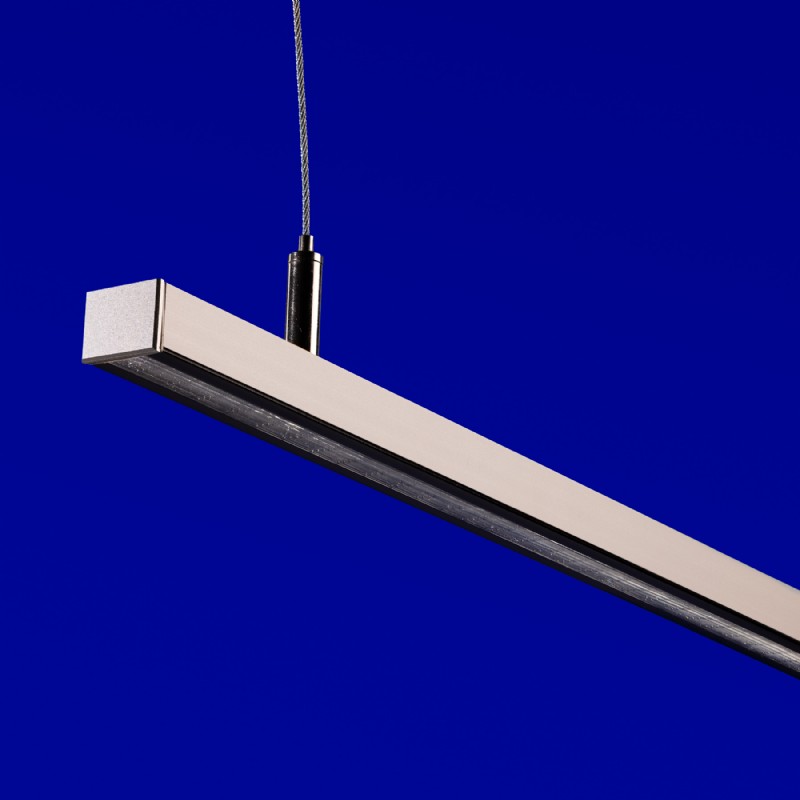

VERS-NANO-LOUVER-SK (11)
Linear LED Fixtures - SuspendedFeatures a co-extruded lens with integrated louvers that provide 35° viewing angles, delivering exceptional glare control ideal for direct view applications.
- 80 Suspension Kit configurations allow fixture to be seamlessly incorporated into any interior
- Create long, continuous lines of light with easy-to-use inline bracket and double feed joiner connectors
- Features a co-extruded lens with integrated louvers that provide 35° viewing angles, delivering exceptional glare control ideal for direct view applications.
- The Crosswise louver reduces end-view glare while the Lengthwise louver reduces side-view glare.
- Lens options include frosted or diffused finishes to suit various lighting requirements.
- Integrated metal endcaps combined with extruded aluminum housing give this LED fixture a polished modern look.
- White Optics, an internal coating that results in greater lumen output, comes standard in all VERS LED fixtures.
- Consult factory for field assembly options.
More About
VERS-NANO-LOUVER-SK (11)
Technical Information
Watts per Foot | 1.5, 3.0,4.0,5.0,HE 1.5, HE 3.0, HE 6.0, HE 9.0 |
Finish | Satin, Black, Bronze, White, Custom |
Mounting | Suspension Bracket |
Rated | Dry IP20, Damp IP54 |
Warranty | 5 Year |
Photometric Performance | 1 |
LED Light Engine | Static White, Static White High-Efficacy, Dynamic White High-Efficacy, Warm Dim, RGB, Static Color |
Length | Fixture length min 24”, max 98” not including end caps. Tolerance +0 – 1/8”. Consult factory for lengths under 24". Shop drawings required for run lengths over 8ft. |
Lenses | Diffused Internal, Frosted Internal |
Lumens per Foot | 348 at SW 4.0 w/f |
CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
Certifications | UL Listed, RoHS, JA8-2016, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16 |
Compatible App | Scene App |
Connector Wire | Bare Wire (Standard 36") |
CRI | 98 at 3000K |
Environment | Indoor |
