SW-HE-DR24/1.5
LED Strips - Static White High Efficacy Double Row
181 lm/ft @ 3000K, 8 diodes per 1” cut point
- High-efficacy, one bin, one step static white LED tape provides consistent color project to project with exceptional photometric qualities
- 8 diodes per 1” cut point
- Field-cuttable up to 768”
- Ambient operating temp: -4-160°F
- Installation temp: 50-100°F
- Storage temp: -4-140°F
- Calculated L70 = 66000 hrs
Technical Information
| Watts per Foot | 1.5 |
| Rated | Dry IP20 |
| LED Type | High Efficacy Static White |
| Cut Length | 1" increments |
| LEDs per Cut Length | 8 diodes |
| Environment | Indoor |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, CE, 1 Bin 1 Step, RoHS, Declare, UKCA |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire (Standard 24"), Barrel, Close End (No feed), Connector 6", Connector 24" |
| CRI | 98 at 3000K |
| Warranty | 5 year |
Videos
Related Products
iQ-PH
80W at 24VDC, offering 100% flicker-free dimming and compatibility with both forward and reverse phase dimmers
iQ-PH+QD1
80W at 24VDC with a fully potted design, providing 0-100% flicker-free phase dimming
OPTI-FLAT (01)
Multiple lens options for diode visibility and beam control
OPTI-OPTICS (02)
9 optical lens options with precision beam control
Q-MINI-J
UL Listed, mini junction box
Q-MINI-J5
UL Listed, water resistant mini junction box
Q6M-DC+CAP
60W at 12VDC | 60 or 100W at 24VDC
QT-CAB-eLED+0-10V
UL-listed, IC-rated enclosure supports 0-10V dimming, 12VDC/24VDC products, and can be recessed or surface mounted, handling up to 6 drivers and dimming modules
QT-CAB-eLED+0-10V-AWN
UL-listed, IC-rated enclosure supports 0-10V dimming, Lutron Athena Wireless Nodes, and up to 6 drivers, allowing easy programming and seamless connection to Lutron controls.
QT-CAB-eLED+DALI-DT6
IC-rated LED power supply cabinet supports up to 5 drivers with DALI 2 DT6 decoders, prewired for 1-5 zones, and can be recessed or surface mounted for interior use
QT-CAB-eLED+DALI-DT6-AWN
IC-rated LED power supply cabinet supports up to 5 drivers with DALI DT-6 decoders, Lutron Athena Wireless Nodes for easy programming, and offers 100-500 watt capacity with recessed or surface mounting options
QT-CAB-eLED-ND
IC-rated DC power supply cabinet provides 12V or 24V constant voltage output with 60-600 watts of power, designed for interior use
QT-CAB-QZ-PH/0-10V
IC-rated housing supports 0-10V dimming to 0.1%, 24VDC products, and up to 7 drivers, with recessed or surface mounting for interior use
QTM-DC+CAP
60-120W at 12VDC | 60-200W at 24VDC
QTM-eLED(E)
40-200W at 24VDC
QTM-eLED+0-10V
60W-300W surface mount LED power supply center
QTM-eLED+0-10V-AWN
60W-300W LED power supplies with factory-installed Lutron Athena Wireless Nodes
QTM-eLED+DALI-DT6
100-300W at 24VDC LED power supplies with DALI 2 DT-6 Decoders
QTM-eLED+DALI-DT6-AWN
100W-200W LED power supplies designed for DALI 2 applications
QTM-eLED-ND
DC power supply center with constant voltage output of 12 or 24VDC
QZ-BOWTIE+DIMMER
Class 2 LED driver providing smooth, flicker-free dimming down to 0.1% with phase (forward or reverse) or 0-10V controls, delivering a 24VDC constant voltage output
QZ-DALI-DT6
96W LED power supply features 1 channel output
QZ-DMX
96W at 24VDC LED Driver

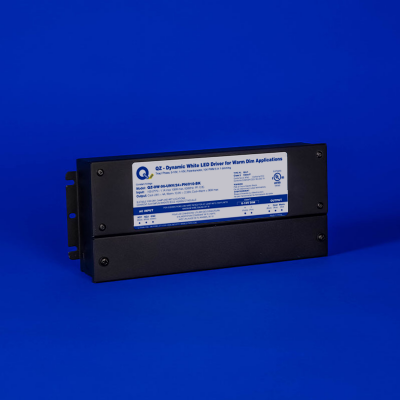

QZ-DW
