QTL MICRO 5 Series Animation

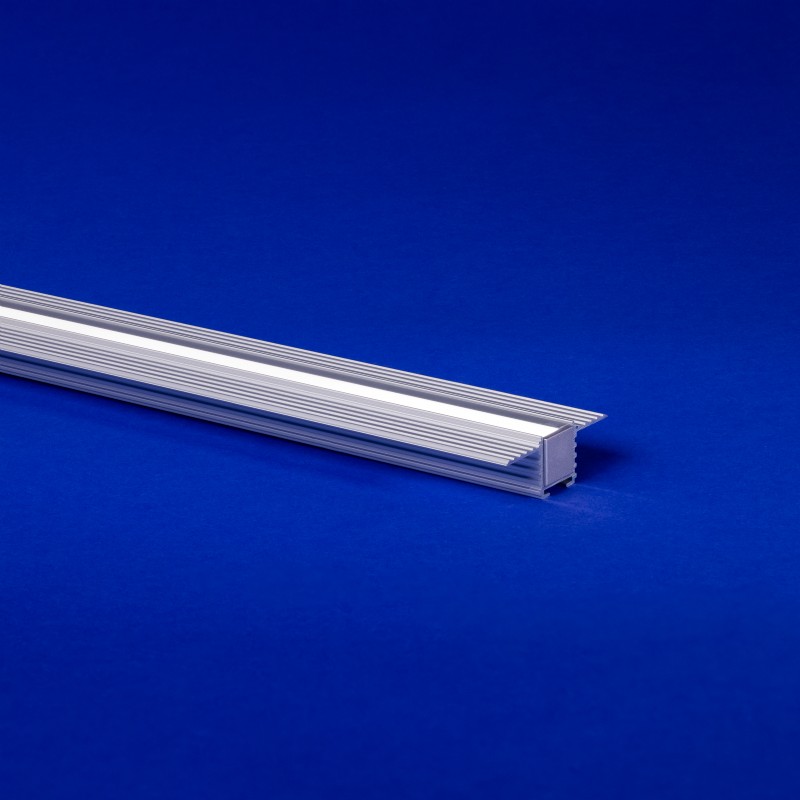

MICRO 5 POP MUD-IN-ENCAPSULATED (03)
Polyurethane-filled MICRO 5 asymmetrical fixture for flush installations
- MICRO 5 Series linear LED fixture designed to provide superior light performance and uniformity with discreet integration into drywall
- Two-piece mud-in fixture
- Features high-quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
- Asymmetric fixture with an 80° focused beam 20° off-nadir
- Once installed, its wings are covered with tape and compound to create a seamless look
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 2.0 watts or less per foot per NEC regulations
More About
MICRO 5 POP MUD-IN-ENCAPSULATED (03)
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Black, Bronze, White, Custom |
| Mounting | Screw, Clip |
| Rated | IP67 |
| Warranty | 5 year |
| Photometric Performance | Clear, Translucent |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Fixture length min 12”, max 98.43” not including end caps. |
| Lenses | Clear, Translucent |
| CCTs | 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, Declare |
| Connector Wire | Bare Wire 24" |
| Environment | Indoor, Outdoor |
