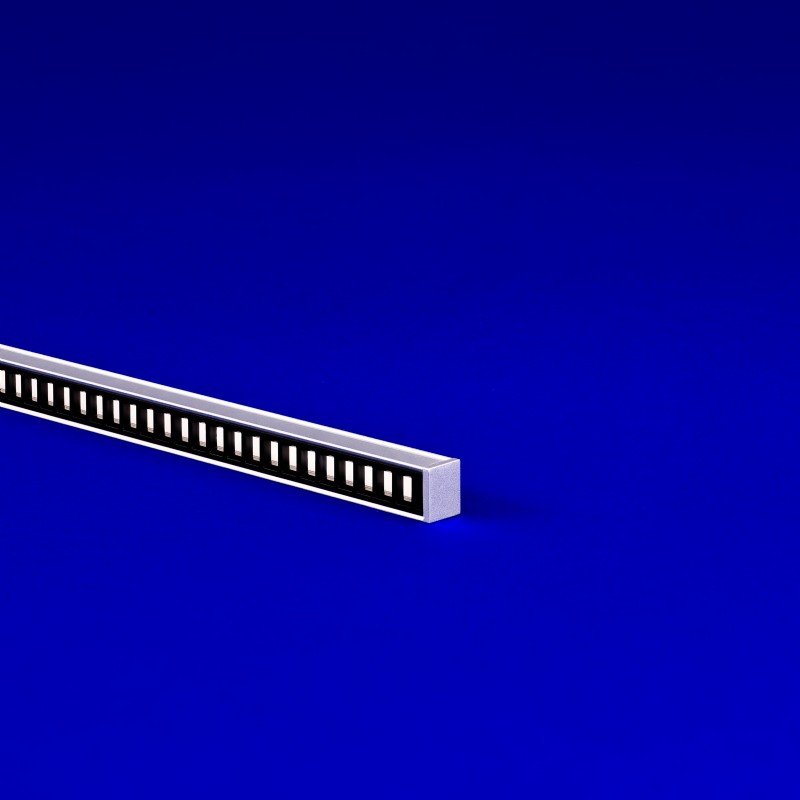

MICRO 5 ATOM-LOUVER (05)
24VDC Linear LED Fixtures - Surface & Recessed Applications
MICRO 5 fixture that seamlessly blends with millwork details
- MICRO 5 Series linear LED fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
- 60% smaller than ESSENTIALS-TORQ
- Delivers equivalent efficacy as standard size fixture
- Diffused lens reduces diode visibility
- Ideal for surface mounted or recessed installations that call for low-profile light in small areas
- Mounting options include a clip or a concealed magnet, making installation and repositioning effortless
- Suitable for installation in clothes closet when specified with LEDs at 2.0 watts/ft or less per NEC regulations
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Black, Custom |
| Mounting | Stainless Steel |
| Rated | Dry IP20, Damp IP54 |
| Warranty | 5 year |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Minimum length is 12”, maximum length is 98.43” not including end caps. Contact us for lengths under 12” |
| Lenses | Diffused |
| CCTs | 1800K,2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel, Connector 6", Connector 24" |
| Dimensions | 0.44" x 0.37" |
| Environment | Indoor/Outdoor |
| Product Applications | Surface Mount, Recessed, Millwork |
| Beam Spread | 119.9° |
