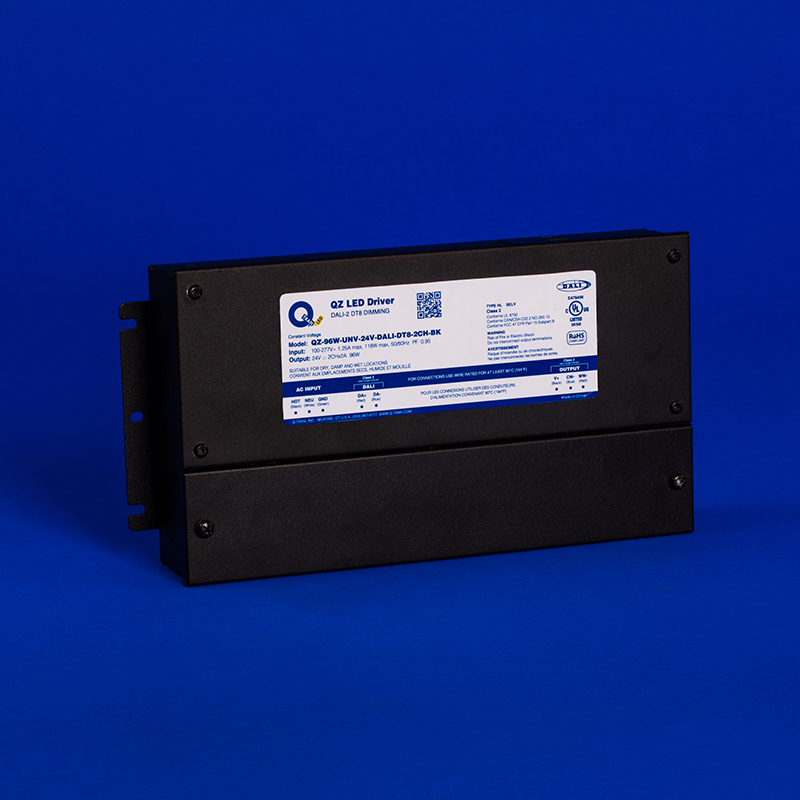

QZ-DALI-DT8
LED Power Supply - 96W
96W LED power supply features up to 4 channel outputs
- Class 2 LED power supply with DALI DT8 control capabilities
- Features up to 4 channel outputs that can power tunable white and dynamic color LED products
- Programmable with the QTL NFC App for reading and writing DALI Addresses and adjusting output voltage. Also programmable with DALI-2 controller
Technical Information
| Wattage | 96W |
| Primary Voltage | Universal |
| Secondary Voltage | 24V |
| Control | DALI-DT8 |
| Channel | 2 Channel, 3 Channel, 4 Channel |
| Color | Black Powder Coat Finish |
| Certifications | UL Listed, FCC, RoHS, Declare |
| Mounting | Surface Mount (Vertical/Horizontal) |
| Warranty | 5 year |
