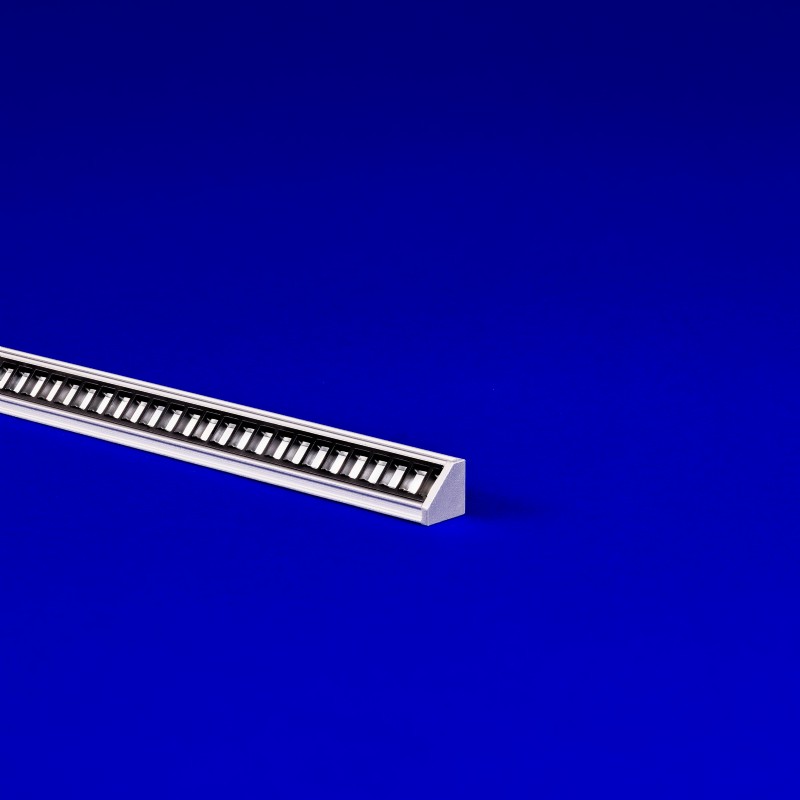

MICRO 5 TILT-LOUVER (05)
24VDC Linear Fixtures - Corner & Surface
- MICRO 5 Series linear LED fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
- Corner and surface mount fixture with flat lens
- 60% smaller than ESSENTIALS-VEVE
- Delivers equivalent efficacy as standard size fixtures
- Diffused lens reduces diode visibility
- Mounting options include a clip or a concealed magnet, making installation and repositioning effortless
- Suitable for installation in clothes closet when specified with LEDs at 2.0 watts/ft or less per NEC regulations
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Black, Custom |
| Mounting | Stainless Steel Clip |
| Rated | Dry IP20, Damp IP54 |
| Warranty | 5 year |
| Photometric Performance | Diffused |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Fixture length min 12", max 98.43" not including end caps. Consult factory for lengths under 12". |
| Lenses | Frosted, Diffused |
| Lumens per Foot | 319 at SW 4.0 w/f |
| CCTs | 1800K,2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, 1 Bin 1 Step, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, RoHS, Declare, JA8-2019, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel, Connector 24", Connector 6" |
| Dimensions | 0.44" x 0.44" |
| Environment | Indoor/Outdoor |
| Product Applications | Surface Mount, Millwork |
