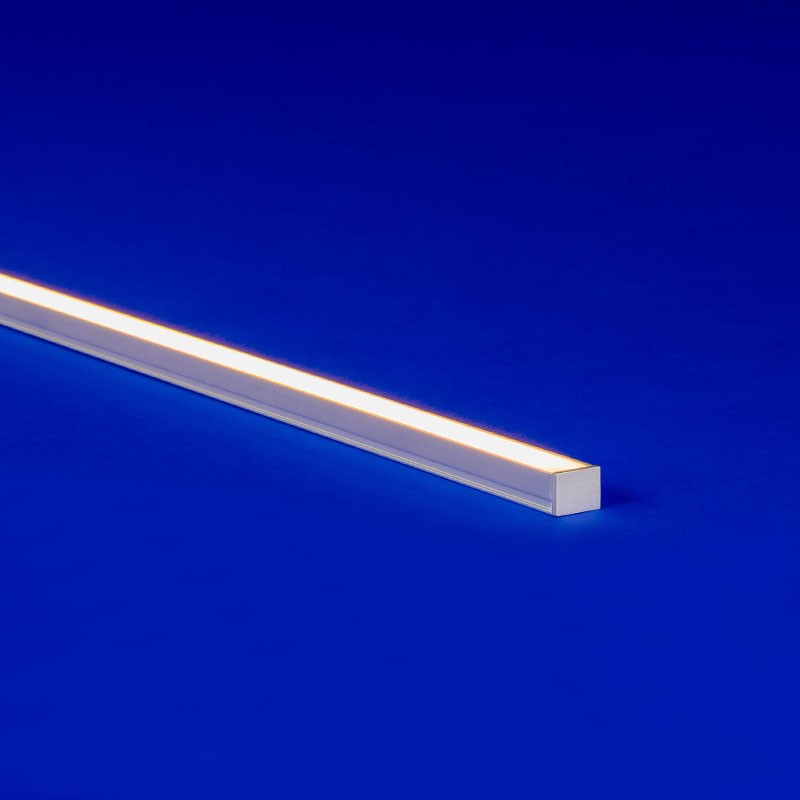

MICRO 5 ATOM-ENCAPSULATED (03)
24VDC Linear LED Fixtures - Surface & Recessed Applications
Polyurethane filled MICRO 5 fixture with IK10 rating
- MICRO 5 Series linear LED fixture engineered for exceptional light quality and even distribution, seamlessly blending with millwork details
- Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
- Encapsulation available in clear or translucent
- Suitable for indoor and outdoor locations
- 60% smaller than ESSENTIALS-TORQ
- Delivers equivalent efficacy as standard size fixtures
- Ideal for surface mounted or recessed installations that call for low-profile light in small areas
- Features a stainless steel mounting clip, making installation and repositioning effortless
More About
MICRO 5 ATOM-ENCAPSULATED (03)
Technical Information
| Watts per Foot | 1.0, 2.0, 4.0 |
| Finish | Satin, Black, Custom |
| Mounting | Stainless Steel Clip |
| Rated | Encapsulated IK10 |
| Warranty | 5 year |
| Photometric Performance | Clear, Translucent |
| LED Light Engine | Static White, Dynamic White, RGB |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Clear, Transclucent |
| Lumens per Foot | 202 at SW 4.0 w/f |
| CCTs | 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, Declare, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6", Not soldered |
| CRI | 97-98 at 3000K |
| Dimensions | 0.44" x 0.37" |
| Environment | Indoor/Outdoor |
| Product Applications | Surface Mount, Recessed, Millwork |
