Field Cuttable Q-CAP
Q-CAP Handling Instructions
Q-CAP LUME

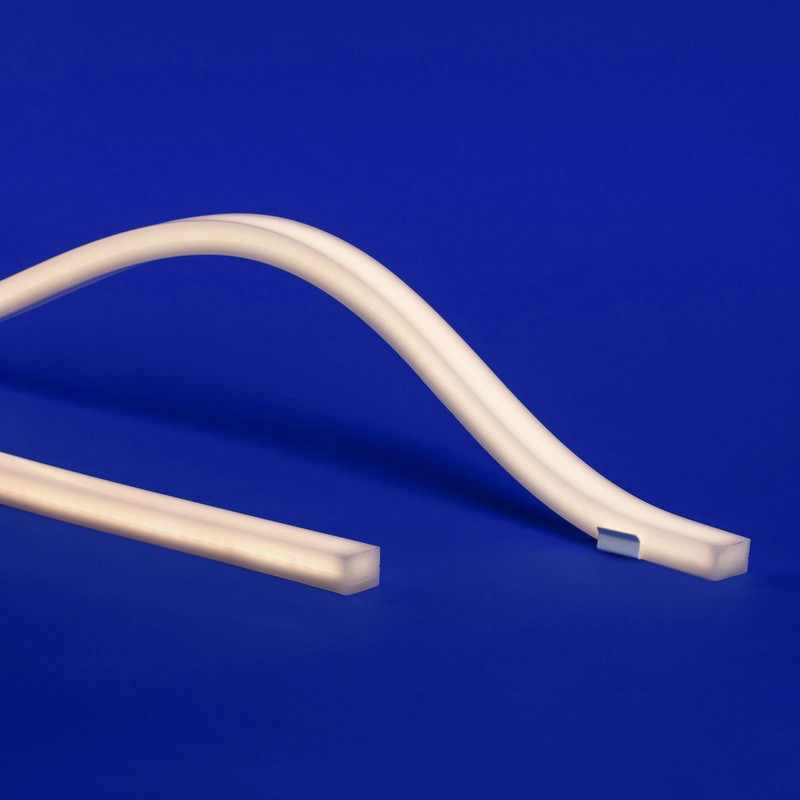

150° beam angle creates a three-dimensional glowFully encapsulated flexible fixture
- Flexible encapsulated LED profile with 6" bend radius
- Three-sided illumination
- Features up/down bend capabilities
- Rated for both interior and exterior use, offering versatility for various environments
- Choose from three different mounting options
- 150° beam angle creates a three-dimensional glow
- Available in Static White, Static Color, RGB, and DW for Tunable Applications, and DW for Warm Dim applications
- QTL Red & Amber LED products are Florida Fish and Wildlife Conservation Commission certified, making them safe for turtles and other wildlife
-
Specify a 4' piece of field cuttable Q-CAP for precise run length adjustments on-site, enabling orders before construction is complete and allowing for jobsite modifications (dry applications only)
More About
Q-CAP LUME
Technical Information
Rated | Dry IP20, Wet IP67 |
End Caps | Translucent |
Mounting | White Snug Clip, Magnetic Clip, Low Profile Clear PVC Mount Clip, Low Profile Clear PVC Channel |
Warranty | 5 year |
Photometric Performance | Encapsulated Translucent |
Environment | Indoor/Outdoor |
LED Light Engine | Static White, Static White High Efficacy, Dynamic White High Efficacy (Tunable White), Warm Dim, Static Color, RGB |
Length | Fixture length min 12", max 191". Consult factory forlengths under 12". SW: Available in 1" increments.SW-HE: Available in 2" increments. |
Lenses | Encapsulated Translucent |
Bend Orientation | Up/Down Bend |
Bend Radius | 6" bend radius |
CCTs | 2400K, 2700K, 3000K, 3500K, 4000K |
Certifications | UL Listed, RoHS, Declare |
Compatible App | SCENE Dongle |
Connector Wire | Bare Wire (Standard 24"), Barrel, Connector 6," Connector 24" |
CRI | 95 at 3000K |
