WURM
Q-CAP Handling Instructions

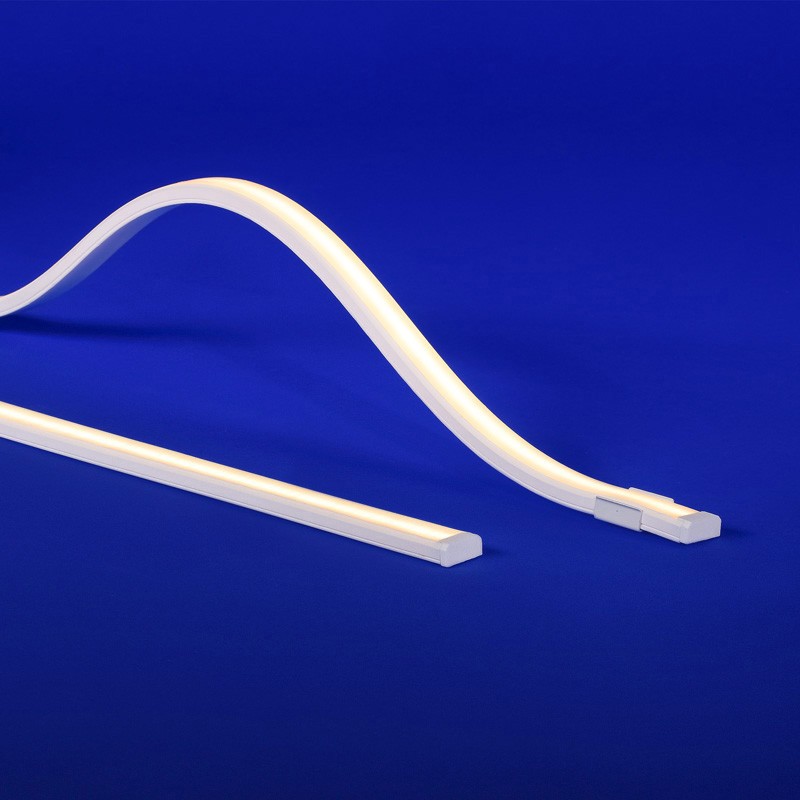

Q-CAP WURM
Up/down & helical bend flexible encapsulated fixture
- Fully encapsulated flexible fixture with up, down, and helical bending capabilities
- Perfect for interior and exterior applications
- 6" bend radius
- Compatible with two different mounting hardware options
- Ideal for low-profile accent lighting
- Available in Static White, RGB, RGBW, and DW for Tunable Applications, and DW for Warm Dim Applications
-
Specify a 4' piece of field cuttable Q-CAP for precise run length adjustments on-site, enabling orders before construction is complete and allowing for jobsite modifications (dry applications only)
More About
Q-CAP WURM
Technical Information
| Rated | Dry IP20, Wet IP67 |
| End Caps | White Endcaps |
| Mounting | Magnetic Clip Small, White Snug Clip Small, 16' BENDIT Up/Down Stainless Steel Channel, 32' BENDIT Up/Down Stainless Channel, 16' BENDIT Up/Down White Stainless Channel, 32' BENDIT Up/Down White Stainless Channel |
| Photometric Performance | Diffused, Polar, Frosted, Clear |
| Warranty | 5 year |
| Environment | Indoor/Outdoor |
| LED Light Engine | Static White, Static White High Efficacy, Dynamic White Tunable Applications, Warm Dim, RGB, RGBW, RGBW High Efficacy |
| Length | Fixture length min 12", max 191". Consult factory forlengths under 12". SW: Available in 1" increments.SW-HE: Available in 2" increments. |
| Lenses | Encapsulated Clear, Encapsulated Translucent |
| Bend Orientation | Up/Down & Helical Bend |
| Bend Radius | 6" bend radius |
| CCTs | 2400K, 2700K, 3000K, 3500K, 4000K, 2400K-3000K, 2700K-4000K |
| Certifications | UL Listed, RoHS, Declare |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel, Connector 24", Connector 6" |
| CRI | 96,98 at 3000K |
