Q-CAP ANYBEND

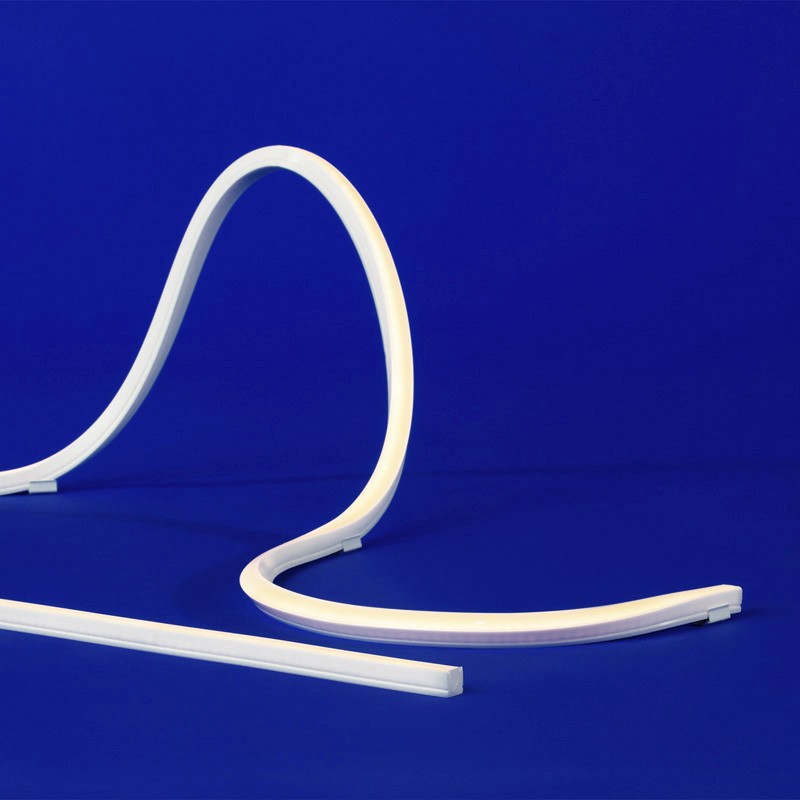

Flexible Encapsulated LED FixturesFlexible micro-fixture with up/down and side bending capabilities
- Flexible encapsulated LED fixture
- Both up/down bend and side bend capabilities
- Rated for interior and exterior use, offering versatility for various environments
- Choose from three different mounting options
- Utilize clear endcaps for continuous runs
- 2022 IES Progress Report Award Winner
- Specify a 4' piece of field cuttable Q-CAP for precise run length adjustments on-site, enabling orders before construction is complete and allowing for jobsite modifications (dry applications only
Technical Information
| Rated | Dry IP20, Wet IP67 |
| End Caps | Clear Endcaps, White Endcaps |
| Warranty | 5 year |
| Wattage | 1.0W-SO, 2.0W-HO, 4.0W-VHO |
| Environment | Indoor/Outdoor |
| Length | Fixture length min 12", max 191". Consult factory forlengths under 12". Available in 1" increments. |
| Lenses | Encapsulated Clear, Encapsulated Translucent |
| Mounting | White Snug Clip, PVC Mount Clip, Low Profile PVC Mount Clip, PVC Channel, Low Profile PVC Channel, 16' BENDIT Side Stainless Steel Channel, 32' BENDIT Side Stainless Steel Channel, 16' BENDIT Side White Stainless Channel, 32' BENDIT Side White Stainless Channel, 16' BENDIT Up/Down Stainless Steel Channel, 32' BENDIT Up/Down Stainless Steel Channel, 16' BENDIT Up/Down White Stainless Channel, 32' BENDIT Up/Down White Stainless Channel |
| Photometric Performance | Encapsulated Clear, Encapsulated Translucent |
| Bend Orientation | Up/Down Bend, Side Bend |
| Bend Radius | 9" bend radius |
| CCTs | 2200K,2400K, 2700K, 3000K, 3500K, 4000K 2400K-3000K, 2700K-4000K |
| Certifications | UL Listed, RoHS, Declare, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel, Connector 24", Connector 6" |
| CRI | 95-97 at 3000K |
| Dimensions | 0.62" x 0.52" x .63" |
