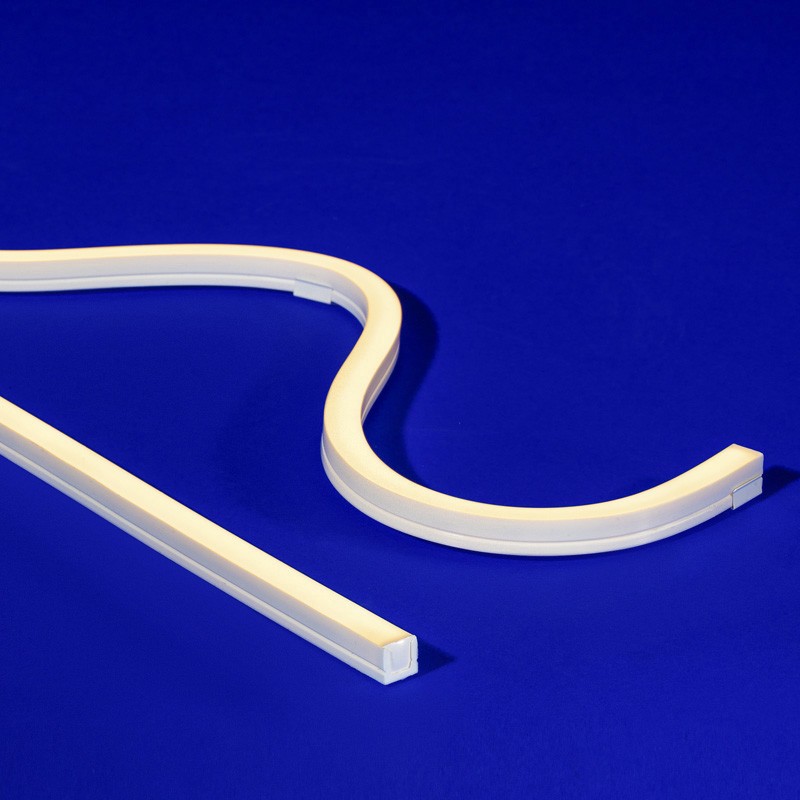

Flexible micro-fixture with 6" side bend radius

  • Flexible encapsulated LED profile with 6" bend radius
  • Features side bend capabilities
  • Interior and exterior rated
  • Rated for both interior and exterior use, offering versatility for various environments
  • Available in seamless configurations for a continuous line of light
  • Utilize clear end caps for continuous runs
  • Available in Static White, RGB, and DW for Tunable Applications, and DW for Warm Dim applications
    2022 IES Progress Report Award Winner

  • Specify a 4' piece of field cuttable Q-CAP for precise run length adjustments on-site, enabling orders before construction is complete and allowing for jobsite modifications (dry applications only)

CONFIGURE WALA
More About Q-CAP WALA
Technical InformationVideosRelated Products

Technical Information

Rated Dry IP20, Wet IP67
Seamless Available in a seamless option
Warranty 5 year
Wattage 1.0W-SO, 2.0W-HO, 4.0W-VHO
Bend Orientation Side Bend
Bend Radius 6" bend radius
CCTs 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, Declare
Compatible App SCENE Dongle
Connector Wire Bare Wire 24" Barrel, Connector 6", Connector 24"
CRI 96-97 at 3000K
End Caps Clear, White
Environment Indoor/Outdoor
LED Light Engine Static White, Dynamic White Tunable Applications, Warm Dim, RGB
Length Fixture length min 12", max 191". Consult factory forlengths under 12". Available in 1" increments.
Lenses Encapsulated Clear, Encapsulated Translucent
Mounting White Snug Clip, PVC Clip, PVC Channel, Low Profile PVC Clip, Low Profile PVC Channel, 16' BENDIT Side Stainless Steel Channel, 32' BENDIT Side Stainless Steel Channel, 16' BENDIT Side White Stainless Channel, 32' BENDIT Side White Stainless Channel
Photometric Performance Encapsulated Clear, Encapsulated Translucent
