FLUT-FLAT (01) is a the deepest flanged LED light fixture allowing the light source to be invisible
FLUT-FLAT (01) is a the deepest flanged LED light fixture allowing the light source to be invisible
ESSENTIALS FLUR-FLAT (01) DIMENSIONS
Calculate ESSENTIALS FLUR-FLAT (01) Length

ESSENTIALS FLUR-FLAT (01)

Recessed Linear LED Fixtures
1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
WhiteOptics
5 Year Warranty
Declare Label Approved Lighting
Red List Approved
Buy American Act - Select Light Engines, See Spec Sheet

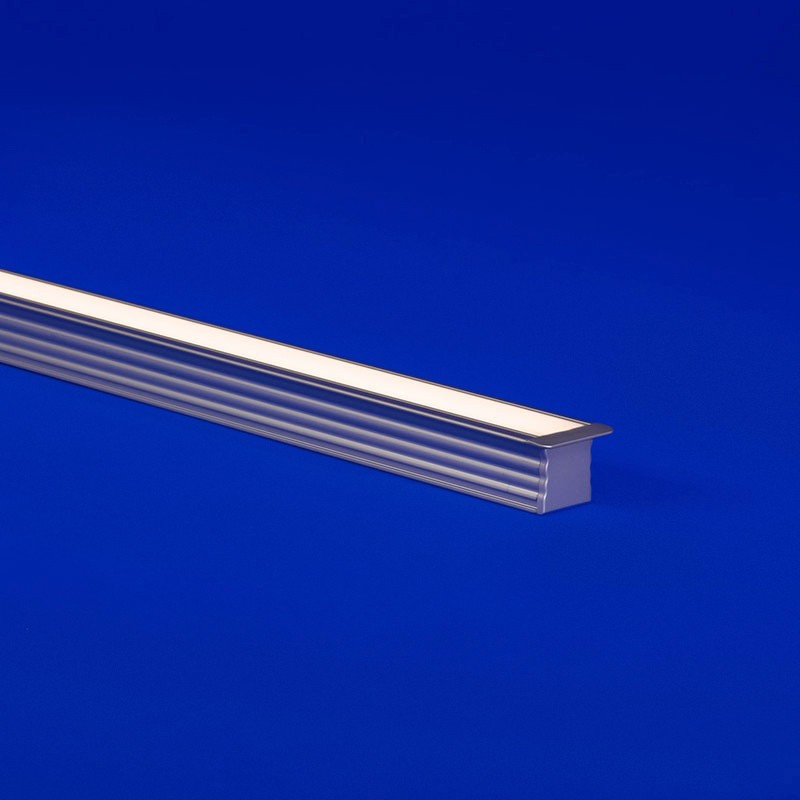

Compact and recessed flanged fixture

Options that create brilliance. Pair FLUR, QTL’s deepest flanged LED fixture with an optional mounting tray and a clear lens to create a 45º, 60º, or 80º cuttoff.

• Deep flanged recessed LED fixture
• The flanged edges allow for recessed installation while having refined style with a clean and discreet appearance
• Choose from diffused, polar, frosted, clear 45°, clear 60°, or clear 80° lens options for varying diode visibility and beam angles
• Offered with an optional mounting tray
• Features two wire feed options
• Stainless steel mounting clips
• Features painted end caps to match LED extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet
Calculate Length
More About ESSENTIALS FLUR-FLAT (01)
Technical InformationRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Mounting Stainless Steel Clip
Finish Satin, Black, Custom
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Diffused, Polar, Frosted, Clear 45°, Clear 60°, Clear 80°
LED Light Engine Static White, Static White High Efficacy, RGB, RGBW High Efficacy, Static Color, Static White Addressable, Dynamic White High Efficacy (Tunable White), Warm Dim
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Frosted, Polar, Diffused, White Optics
Material Aluminum Housing
CCTs 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 92,98 at 3000K
Dimensions 1.0" x 0.70"
Environment Indoor/Outdoor
Product Applications Surface Mount, Linear Recessed, Millwork Lighting
