VERS-NANO-LOUVER (11)
Linear LED Fixtures - Surface

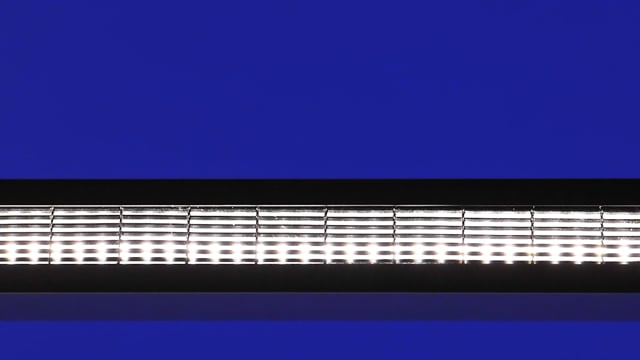

Features a co-extruded lens with integrated louvers that provide 35° viewing angles, delivering exceptional glare control ideal for direct view applications.
- Features a co-extruded lens with integrated louvers that provide 35° viewing angles, delivering exceptional glare control ideal for direct view applications.
- The Crosswise louver reduces end-view glare while the Lengthwise louver reduces side-view glare.
- Lens options include frosted or diffused finishes to suit various lighting requirements.
- Integrated metal endcaps combined with extruded aluminum housing give this LED fixture a polished modern look.
- White Optics, an internal coating that results in greater lumen output, comes standard in all VERS LED fixtures.
- Consult factory for field assembly options.
- Can be suitable for exterior use when specified as wet, contact factory for more information.
Technical Information
| Watts per Foot | 1.5, 3.0,4.0,5.0,HE 1.5, HE 3.0, HE 6.0, HE 9.0 |
| Finish | Satin, Black, Bronze, White, Custom |
| Mounting | Concealed Clip, Magnet |
| Rated | Dry IP20, Damp IP54, Wet IP67 |
| Warranty | 5 Year |
| Photometric Performance | 1 |
| LED Light Engine | Static White, Static White High-Efficacy, Dynamic White High-Efficacy, Warm Dim, RGB, RGBW, RGBW High-Efficacy, Static Color |
| Length | Fixture length min 12”, max 98” not including end caps. Consult factory for lengths under 12". |
| Lenses | Diffused Internal, Frosted Internal |
| Lumens per Foot | 348 at SW 4.0 w/f |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Buy American Act, Declare, Red List Approved |
| Compatible App | Scene App |
| Connector Wire | Bare Wire (Standard 36"), Connector 6", Connector 24" |
| CRI | 98 at 3000K |
| Environment | Indoor/Outdoor |
