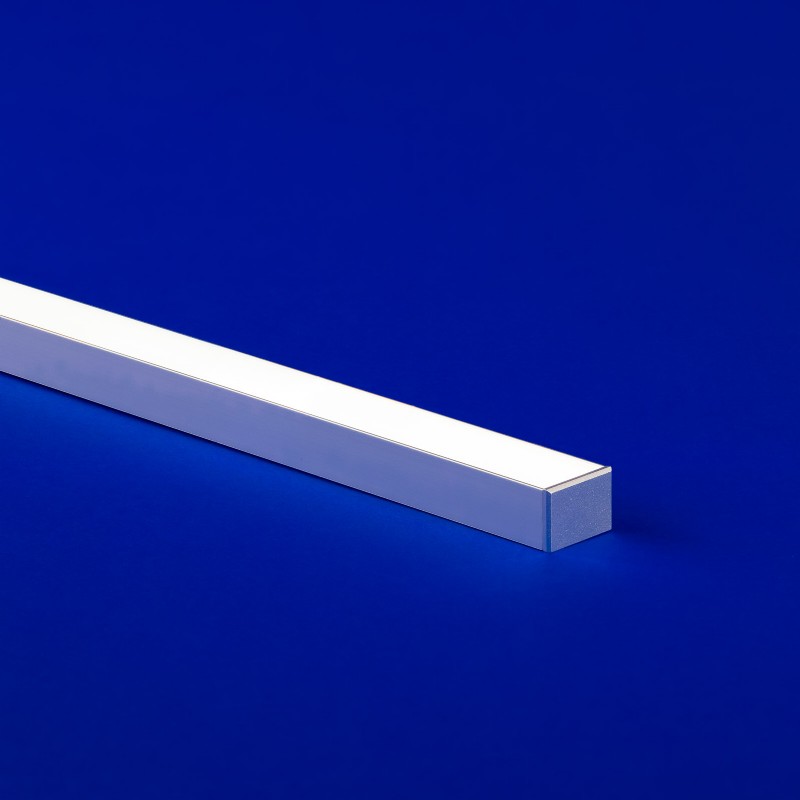

VERS-Flush (02) is versatile LED fixture with a co-extruded lens with an internal reflector for improved lumen output
VERS-Flush (02) is versatile LED fixture with a co-extruded lens with an internal reflector for improved lumen output
VERS-FLUSH (02) DIMENSIONS
02-L1

VERS-FLUSH (02)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
WhiteOptics
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

This VERSatile fixture features a co-extruded lens with an internal reflector, maximizing efficiency for improved lumen output

• Features a co-extruded lens with an internal reflector, maximizing light delivery for improved brightness.
• The fixture's flat lens sits flush, showcasing the versatile fixture's exceptional light performance in any indoor environment.
• Features integrated metal endcaps
• Mounting options include a concealed or magnetic clip
• With an internal White Optics coating, the fixture achieves greater lumen output
• Durable anodized aluminum housings
• Consult factory for field assembly options
More About VERS-FLUSH (02)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0, HE9.0
Finish Satin, Black, Bronze, White, Custom
Mounting Concealed Clip, Magnet
Rated Dry IP20
Warranty 5 year
Photometric Performance Diffused, Polar
LED Light Engine Warm Dim, Static White High-Efficacy, Dynamic White High-Efficacy, Static White, Static Color, RGB
Length Fixture length min 12", max 98" notincluding end caps. Consult factoryfor lengths under 12".
Lenses Polar, Diffused
Lumens per Foot 347 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Connector 24", Connector 6"
CRI 98 at 3000K
Environment Indoor
External Louver White Plastic, Black Plastic, Satin Anodized AluminumBlack Anodized Aluminum, White Powder Coated Aluminum, No Louver
Product Applications Surface Mount, Cove Lighting, Perimeter Lighting
