WIDE-FLAT-01
WIDE-FLAT-01
ESSENTIALS WIDE-FLAT (01) DIMENSIONS

ESSENTIALS WIDE-FLAT (01)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
NEC Closet Certified
5 Year Warranty
Buy American Act Lighting
Declare Label Approved Lighting
Red List Approved

1" width profile delivers 97° light transmission

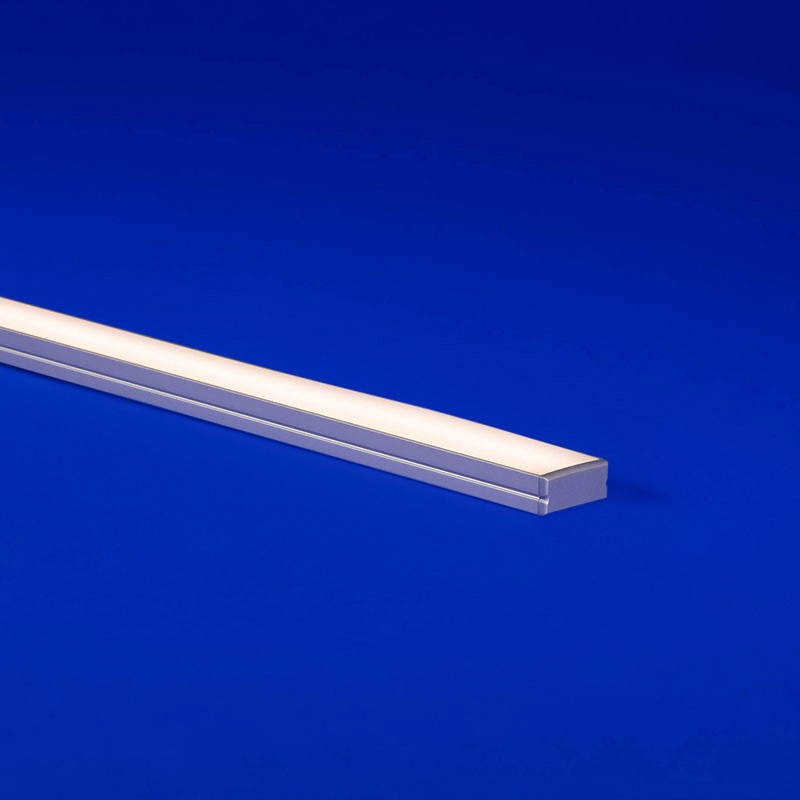

Form meets function. Accentuate architectural details with QTL’s widest linear LED fixture to create bold designs.

• Wide, low-profile LED fixture designed for surface mount applications
• Customize with diffused, polar, frosted, or clear lens options for varying  diode visibility and beam angles
• Mount effortlessly with your choice of stainless steel or plastic clip options
• Features painted end caps to match extrusion finish
• Versatile wiring configurations available: side, back, and end feed options
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet

More About ESSENTIALS WIDE-FLAT (01)

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0
Mounting Stainless Steel Clip, Plastic Clip
Finish Satin, Black, Bronze, Custom
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Clear 97°
Length Fixture length min 12", max 98.43" not including end caps. Consult factory for lengths under 12".
Lenses Clear, Frosted, Polar, Diffused
Lumens per Foot 321 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 92,98 at 3000K
Dimensions 0.90" x .75"
Environment Indoor/Outdoor
Product Applications Surface Mount
