QTLT

UL Listed LED lighting products
Buy American and Buy American Act Lighting Products
MadeInAmerica
Declare Label Approved Lighting
Red List Approved
10 Year Warranty

450-1150W at 12VAC or 24VAC

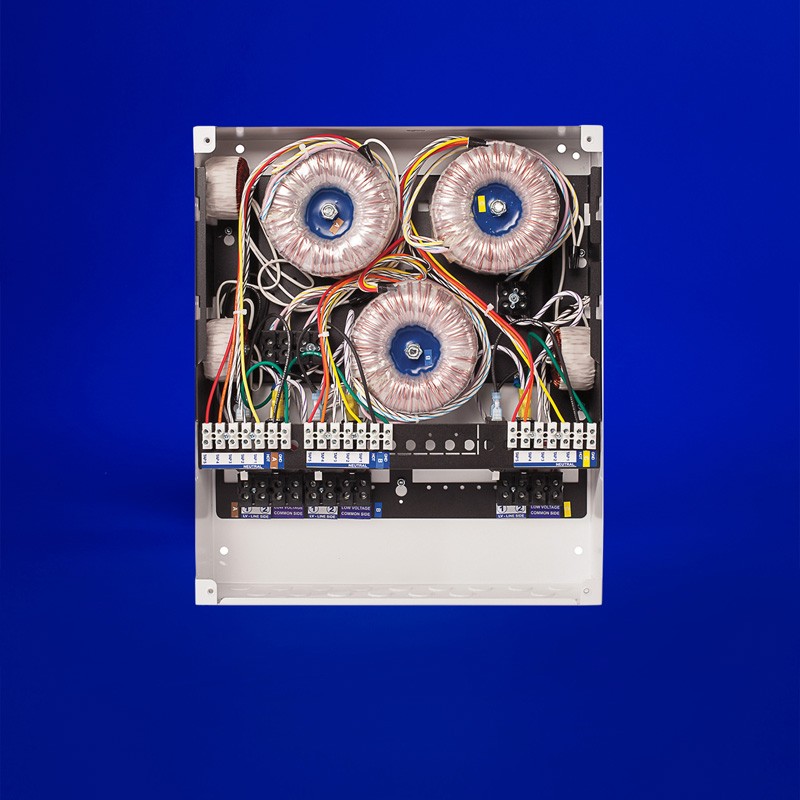

QTLT is a UL Listed tri-powered AC power supply, offering three separate transformers inside one enclosure. QTL's QT product offering includes every feature and benefit QTL's product development team could think of rolled into one interior power supply. The QTLT comes standard with five taps to allow the installer to fine-tune the voltages at the transformer to get as close to the desired voltage at the fixture as possible. Can be surface or recess mounted into a 2”x4” stud wall with the unique ability to install in any thickness drywall. The QT housings are available in medium and large. The medium has a capacity of up to 750 watts and can house up to two transformers. The large housing has a capacity of up to 1500 watts and can accommodate up to four separate transformers.

Technical Information

Environment Indoor (Dry)
Primary Voltage 120V@60Hz, 230V@50/60Hz, 277V@60Hz230V & 277V are not standard, call factory for pricing
Secondary Voltage 12V, 24V, 5.5V, 120V 5.5V & 120V are not standard, call factory for pricing
Wattage 150W, 300W, 500W
Certifications UL Listed
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Magnetic
