Power supply for individually addressable LED strips, suitable for 60/120W at 12VDC or 100/200W at 24VDC. Designed for indoor/outdoor use, it's controllable via DMX with up to 512 addresses and can be surface or wall-mounted.
Power supply for individually addressable LED strips, suitable for 60/120W at 12VDC or 100/200W at 24VDC. Designed for indoor/outdoor use, it's controllable via DMX with up to 512 addresses and can be surface or wall-mounted.
QOM-eLED+IA
Voltage Drop Calculator

QOM-eLED+IA

12V or 24V DC LED Power Supply - 60W–400W
CSA Certified
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting
Red List Approved

Offers 60 or 120W at 12VDC and 100W, 200W, 300W, 400W at 24VDC, supports DMX control with up to 512 addresses per universe

  • Surface mount, exterior rated LED power supply center.
  • Can be controlled using DMX commands, allowing for precise and customizable lighting effects.
  • Supports a maximum of 512 addresses per universe, providing flexibility in addressing multiple LED strips.
  • It provides an SPI (Serial Peripheral Interface) signal to drive the compatible individually addressable LED strip lights.
  • Capable of handling up to 400W of power and control within a single enclosure, offering flexibility in lighting applications.

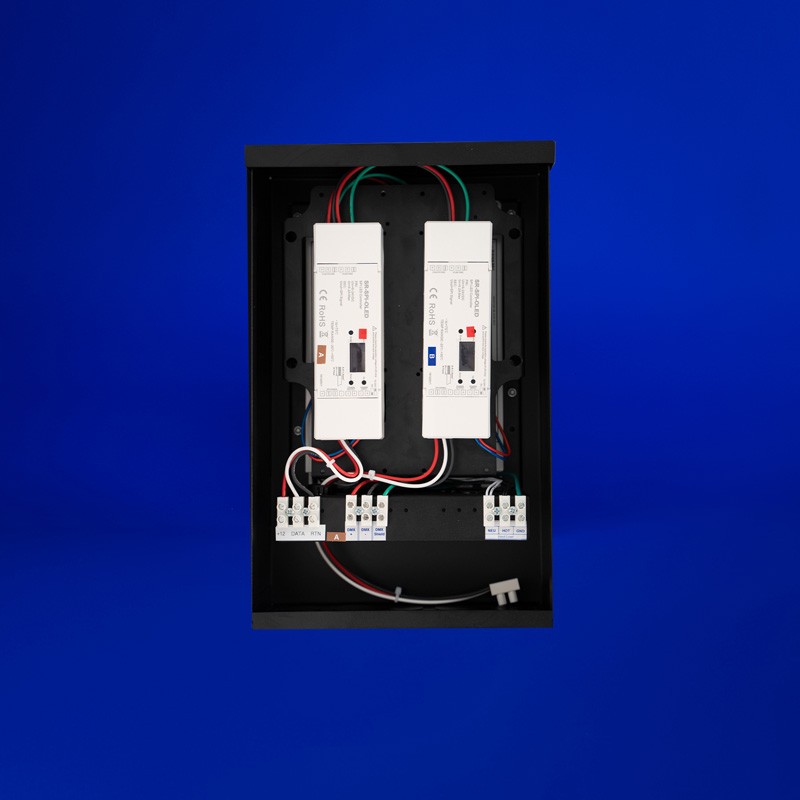

  • Provides plenty of flexibility and comes with all modules prewired together with terminal blocks for landing your LED and control
    wires.
  • Suitable for both indoor and outdoor use, making it versatile for various lighting applications.
Voltage Drop Calculator
More About QOM-eLED+IA
Technical Information

Technical Information

Environment Indoor (Dry), Outdoor (Wet)
Primary Voltage Universal (120V-277V)
Secondary Voltage 12VDC, 24VDC
Warranty 5 Year
Wattage 60W, 100W, 120W, 200W, 300W, 400W
Certifications CSA, RoHS, Declare, Red Listed
Dimming Performance DIM 1%
Dimming Protocol DMX
Driver Electronic
